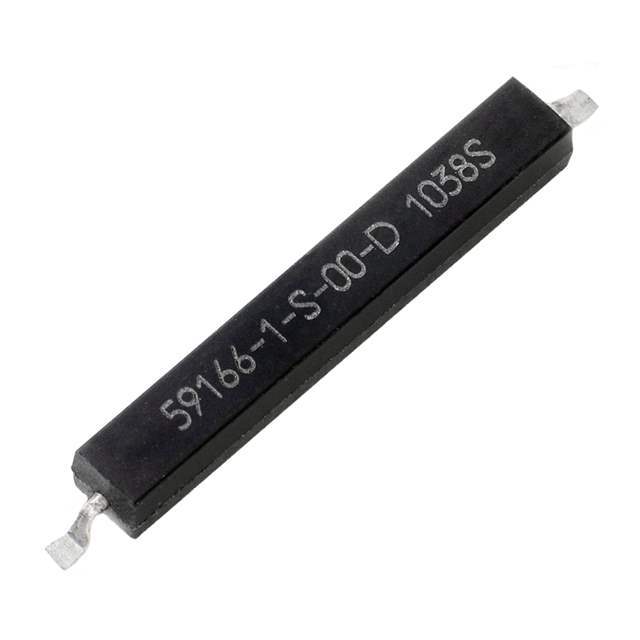

59166-1-T-00-D Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59166-1-T-00-D

Part No 59166-1-T-00-D
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Datasheet
59166-1-T-00-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Part Status Active
Type Molded Body Reed
Circuit SPST-NO
Operate Range 15 ~ 20AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 59166-1-T-00-D CAD Model

Description

The 59166 is a miniature overmolded reed switch 16.00mm x 2.40mm x 2.40mm (0.630” x 0.094” x 0.094”) with Gull Wing leads. It has normally open contact, capable of switching up to 200Vdc at 10W.
