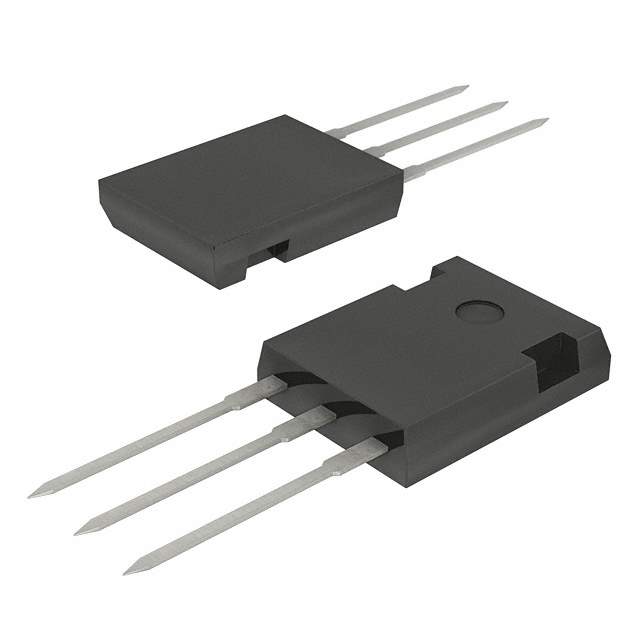

MBR20150PTH Real Image
Same model may have multiple batches, images only for reference.

MBR20150PTH

Part No MBR20150PTH
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 150V TO247  /  Diode Array 1 Pair Common Cathode Schottky 150 V 20A Through Hole TO-247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 1.02 V @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 150 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD (TO-3P)
Base Product Number MBR20150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names MBR20150PTHC0G-ND,1801-MBR20150PTHC0G,1801-MBR20150PTH,MBR20150PTHC0G
Standard Package 900
Win Source Part Number 1076506-MBR20150PTH
Ultra Librarian 3D Model Ultra Librarian MBR20150PTH CAD Model

Description

The MBR20150PTH is a Schottky diode manufactured by Taiwan Semiconductor. It has a voltage - DC reverse (Vr) (max) of 150V and a voltage - forward (Vf) (max) @ If of 1.02V @ 20A.

  • Current - Average Rectified (Io) (per diode): 20A
  • Package: TO-247-3
  • Mounting Type: through-hole
  • Operating Temperature Range: -55°C to 150°C
