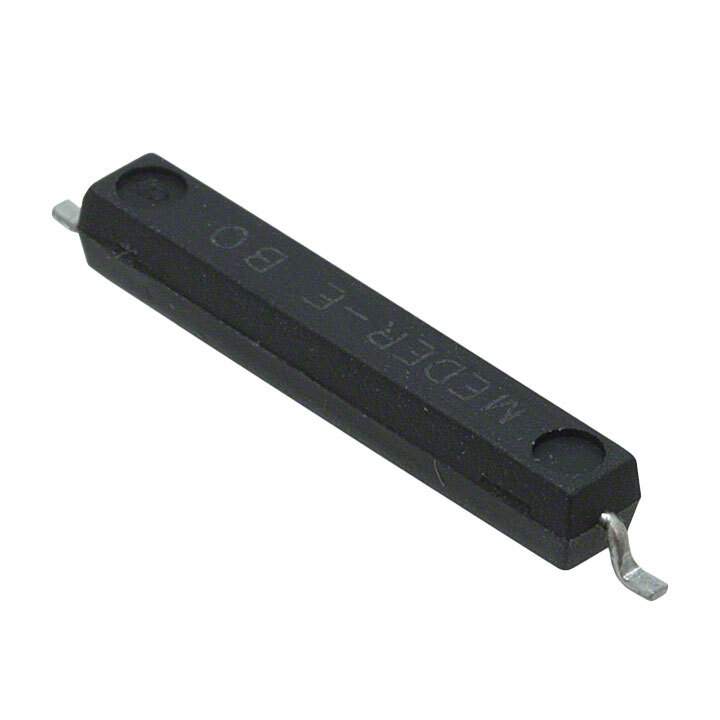

MK15-C-2 Real Image
Same model may have multiple batches, images only for reference.

MK15-C-2

Part No MK15-C-2
Manufacturer Standex-Meder Electronics
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SWITCH REED SPST-NO 500MA 180V  /  Molded Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 500mA (AC/DC) 180 V Surface Mount
Datasheet
MK15-C-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Magnetic, Reed Switches
Mfr Standex-Meder Electronics
Series MK15
Package Tape & Reel
Type Molded Body Reed
Circuit SPST-NO
Operate Range 15 ~ 20AT
Current - Switching 500mA (AC/DC)
Voltage - Switching AC 180 V
Voltage - Switching DC 180 V
Power - Rated 10W
Operate Time 0.5 ms
Release Time 0.05 ms
Mounting SMD (SMT)
Termination Style Gull Wing
Length - Overall 0.768" (19.50mm)
Size - Body 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm)
Height Above Board 0.102" (2.60mm)
Temperature Range - Operating -40°C ~ 130°C
Capacitance 0.3 pF
Current - Carry 1A (AC/DC)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 374-1015-2,374-1015-1,9151710023,374-1015-6,MK15C2
Standard Package 2,500
Win Source Part Number 969552-MK15-C-2
Ultra Librarian 3D Model Ultra Librarian MK15-C-2 CAD Model

Description

The MK15 series of molded body reed switches by Standex-Meder Electronics is designed for SMD (SMT) mounting.

  • Win Source Part Number: 969552-MK15-C-2
  • Package Type: tape & reel
  • Standard Package: 2,500
  • Termination Style: gull wing
  • Height Above Board: 0.102" (2.60mm)
  • Switch Type: SPST-NO
  • Capacitance: 0.3 pF
  • Operate Time: 0.5 ms
  • Release Time: 0.05 ms
  • Power Rating: 10W
  • Operate Range: 15 ~ 20AT
  • Release Range: not specified
  • Current Switching Capacity: 500mA (AC/DC)
  • Voltage Switching Capacity: 180 V (AC and DC)
  • Body Size: 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm)
  • Current Carrying Capacity: 1A (AC/DC)
  • Operating Temperature Range: -40°C to 130°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.50.9065
