Same model may have multiple batches, images only for reference.

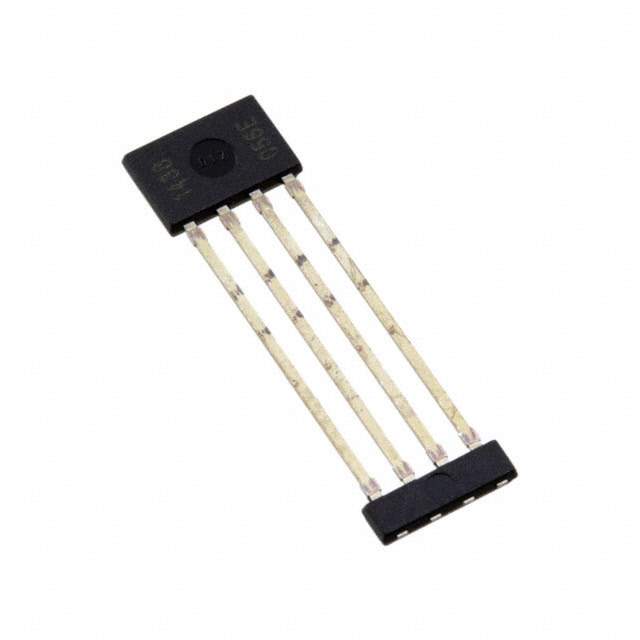

A1351LKTTN-T Real Image
Same model may have multiple batches, images only for reference.

A1351LKTTN-T

Part No A1351LKTTN-T
Manufacturer Allegro MicroSystems, LLC
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR HALL EFFECT PWM 4SIP / Hall Effect Sensor Single Axis 4-SIP
Datasheet
A1351LKTTN-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Linear, Compass (ICs)
Mfr Allegro MicroSystems
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Obsolete
Technology Hall Effect
Axis Single
Output Type PWM
Voltage - Supply 4.5V ~ 5.5V
Current - Supply (Max) 10mA
Current - Output (Max) 7.8mA (Typ)
Resolution 11 b
Bandwidth 150Hz
Temperature Range - Operating -40°C ~ 125°C (TA)
Features Programmable, Temperature Compensated
Supplier Device Package 4-SIP
Mounting Type Through Hole
Package / Case 4-SIP Module
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1347242-A1351LKTTN-T
Ultra Librarian 3D Model Ultra Librarian A1351LKTTN-T CAD Model

Description

The A1351LKTTN-T is a linear, compass integrated circuit (IC) from Allegro MicroSystems.

  • Type: Programmable IC
  • Application: Magnetic sensor applications
  • Axis: Single
  • Output Type: PWM
  • Bandwidth: 150Hz
  • Resolution: 11 bits
  • Temperature Range: -40°C to 125°C
  • Voltage Supply: 4.5V to 5.5V
  • Package: 4-SIP module
  • Mounting Type: Through-hole
  • Feature: Temperature compensated
  • REACH Status: REACH unaffected
  • Standard Package: 4,000
