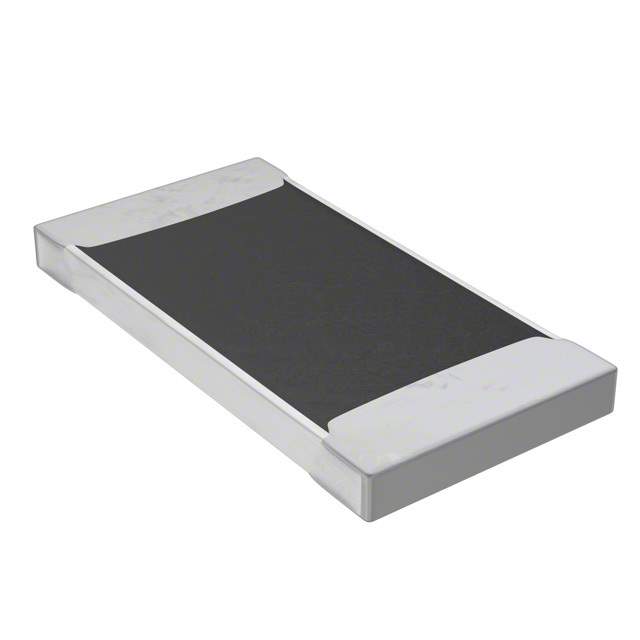

CSNL2512FTL500TR Real Image
Same model may have multiple batches, images only for reference.

CSNL2512FTL500TR

Part No CSNL2512FTL500TR
Manufacturer Stackpole Electronics Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.0005 OHM 1% 2W 2512
Datasheet
CSNL2512FTL500TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.0005
Tolerance ±1%
Power (Watts) 2W
Composition Metal Foil
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C to 170°C
Case / Package 2512
Height - Seated (Max) 0.057" (1.45mm)
Number of Terminations 2
Win Source Part Number 97619-CSNL2512FTL500TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CSNL2512FTL500TR CAD Model

Description

Description

The CSNL2512FTL500TR is engineered for superior thermal management and efficiency. It is adept at handling fluctuations, making it suitable for environments with variability in operational profiles.

Features and Benefits

  • Optimized for thermal efficiency.
  • Extended reliability under high-stress conditions.
  • Compact design suitable for tight spaces.
  • Stable operation with minimal noise.

Applications

  • Industrial control equipment
  • Aerospace systems
  • Smart grid technologies
  • Advanced computing solutions

Additional Details

The CSNL2512FTL500TR excels in scenarios where thermal management and energy efficiency are paramount, providing robust solutions for complex systems.
