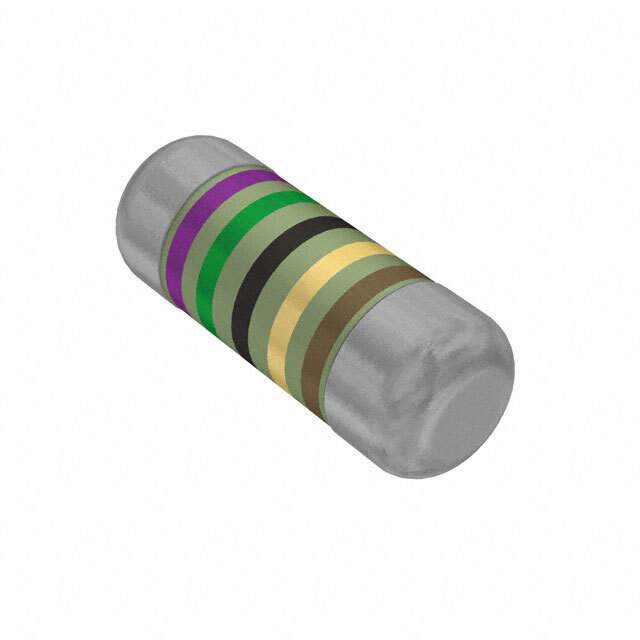

SMM02040C7509FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C7509FB300

Part No SMM02040C7509FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 75 OHM 1% 1/4W MELF 0204
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Beyschlag
Packaging Reel
Resistance 75 Ohms
Tolerance ±1%
Power (W) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package MELF, 0204
Supplier Device Package Mini MELF
Parts Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 734521-SMM02040C7509FB300
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMM02040C7509FB300 CAD Model

Description

The SMM02040C7509FB300 is a thin film resistor from Vishay Beyschlag.

  • Package: It comes in a Mini MELF package and features a resistance of 75 Ohms, tolerance of ±1%, and temperature coefficient of ±50ppm/°C.
  • Application: The device is designed for pulse withstanding and automotive AEC-Q200 applications.
  • Power Rating: It has a power rating of 0.25W
  • Temperature Range: and is rated for a temperature range of -55°C to 125°C.
  • Popularity: The device is low in popularity and has a balance supply and demand status.
