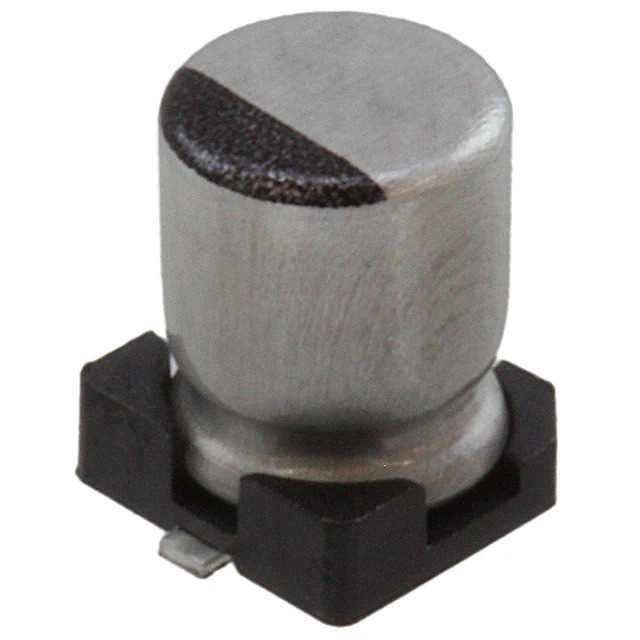

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 8.4 mA @ 120 Hz
Ripple Current @ High Frequency 12.6 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360170-50SEV1M4X5.5
Ultra Librarian 3D Model Ultra Librarian 50SEV1M4X5.5 CAD Model

Description

The 1360170-50SEV1M4X5.5 from Rubycon is an aluminum electrolytic capacitor.

  • Capacitance: 1 µF
  • Voltage - Rated: 50 V
  • Tolerance: ±20%
  • Lifetime @ Temp.: 2000 Hrs @ 85°C
  • Operating Temperature: -40°C ~ 85°C
  • Applications: Automotive
  • Ripple Current @ Low Frequency: 8.4 mA @ 120 Hz
  • Ripple Current @ High Frequency: 12.6 mA @ 10 kHz
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 4.00mm Dia
  • Height - Seated (Max): 5.50mm
  • Surface Mount Land Size: 4.30mm x 4.30mm
  • Series: SEV
  • Polarization: Polar
  • REACH: Unaffected
  • ECCN: EAR99
