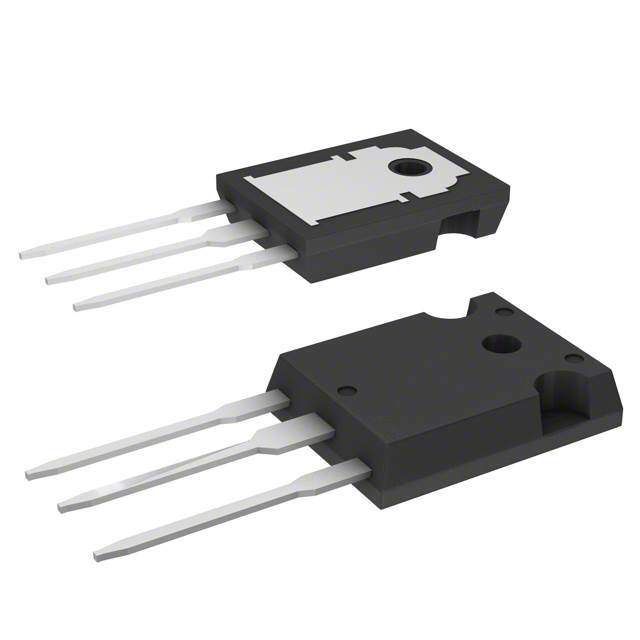

STW80H150C Real Image
Same model may have multiple batches, images only for reference.

STW80H150C

Part No STW80H150C
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTT 150V TO247AD / Diode Array 1 Pair Common Cathode 150 V 40A Through Hole TO-247-3
Datasheet
STW80H150C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr SMC Diode Solutions
Package Tube
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 910 mV @ 40 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 150 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD
Base Product Number STW80
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1350085-STW80H150C
Ultra Librarian 3D Model Ultra Librarian STW80H150C CAD Model

Description

The STW80H150C from SMC Diode Solutions is a fast recovery diode array with a Schottky technology.

  • Maximum Voltage: 150V
  • Forward Voltage: 910mV @ 40A
  • Diode Configuration: 1 Pair Common Cathode
  • Mounting Type: Through-Hole
  • Package: TO-247-3
  • Supplier Device Package: TO-247AD
  • ECCN: EAR99
  • MSL Level: 1
  • REACH: REACH Affected
  • HTSUS: 8541.10.0080
