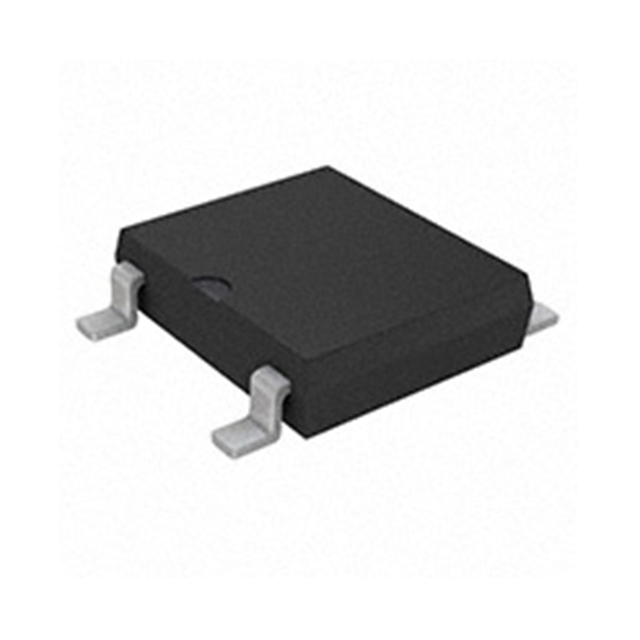

Same model may have multiple batches, images only for reference.
ABF210 SMC Diode Solutions
Same model may have multiple batches, images only for reference.

ABF210

Part No ABF210
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 2A ABF
Datasheet
ABF210 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tape & Reel
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABF
Base Product Number ABF210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367792-ABF210
Ultra Librarian 3D Model Ultra Librarian ABF210 CAD Model

Description

The ABF210 is a surface mount bridge rectifier diode from SMC Diode Solutions.

  • Application: Rectification
  • Package: 4-SMD, Gull-Wing
  • Mounting Type: Surface Mount
  • Average Rectified Current (Io): 2A
  • Forward Voltage Drop (Vf): 1V @ 2A
  • Reverse Leakage Current: 5µA @ 1000V
  • Peak Reverse Voltage: 1kV
  • Temperature Range: -55°C to 150°C
  • REACH Compliance: Compliant
  • ECCN: EAR99
  • Product Status: Obsolete
  • Applications: Power Supplies, Motor Drives, Industrial Applications
