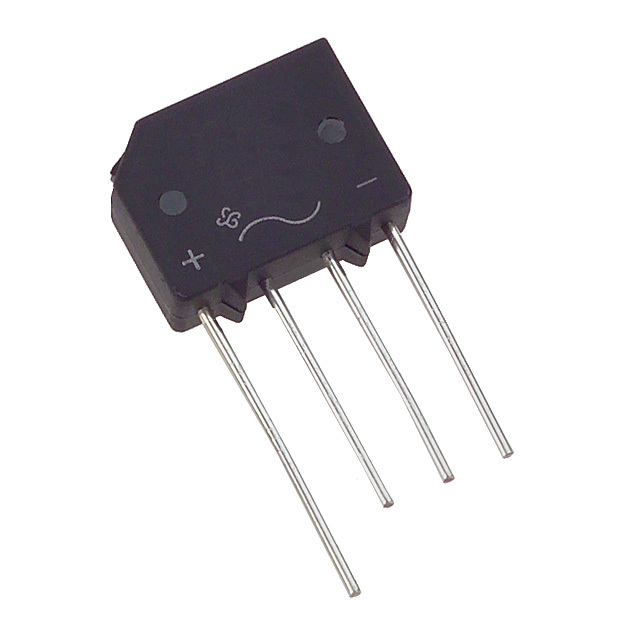

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 4 A
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Case / Package 4-SIP, KBL
Supplier Device Package KBL
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1491181-KBL02-E4/51
Ultra Librarian 3D Model Ultra Librarian KBL02-E4/51 CAD Model
