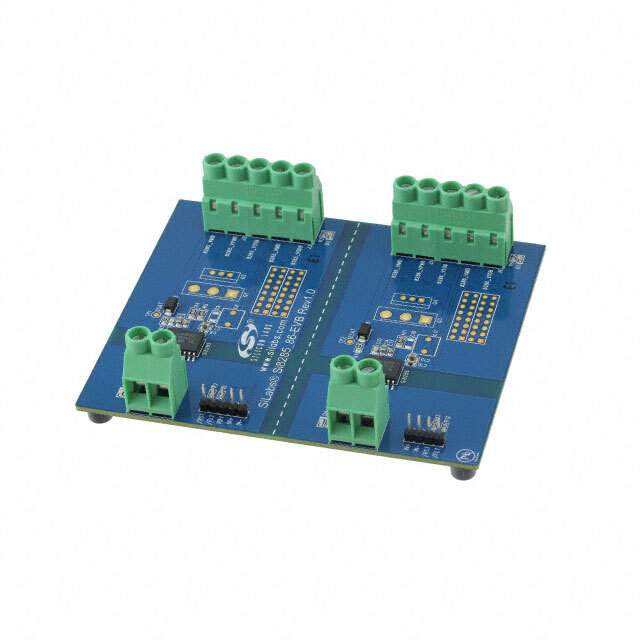

The SI8285_86-KIT is an evaluation kit designed to demonstrate the capabilities of the SI8285 and SI8286 isolated gate drivers from Skyworks Solutions Inc. This kit enables engineers to evaluate the performance of these gate drivers in various power supply and motor control applications.

Applications

• Power Supplies: Used for evaluating gate driver performance in isolated power supply designs.
• Motor Control: Employed in testing gate driver functionality in motor control applications.
• Inverters: Utilized for assessing gate driver capabilities in inverter designs.
• Renewable Energy Systems: Applied in evaluating gate driver implementations in solar inverters and wind turbine converters.
• Industrial Automation: Used in testing gate driver functionality in industrial automation equipment.

Features

• On-board SI8285/86 Gate Drivers: Directly integrates the SI8285 and SI8286 devices for immediate evaluation.
• Isolated Power Supply: Includes an isolated power supply for driving the gate drivers.
• Test Points: Provides test points for monitoring gate drive signals and power supply voltages.
• Configurable Settings: Offers configurable settings for dead time and other gate driver parameters.
• Protection Features: Incorporates protection features such as overcurrent and undervoltage lockout.

Benefits

• Simplified Evaluation: Streamlines the process of evaluating the SI8285 and SI8286, reducing development time.
• Detailed Performance Analysis: Enables thorough testing and analysis of gate driver performance characteristics.
• Reduced Design Risk: Helps identify and mitigate potential design issues early in the development cycle.
• Optimized System Performance: Allows for fine-tuning of gate driver settings to achieve superior system performance.
• Enhanced Design Confidence: Provides a reliable platform for validating design choices and ensuring optimal system operation.

Additional Details

The SI8285 and SI8286 are isolated gate drivers designed to provide robust and reliable gate drive for power MOSFETs and IGBTs. The evaluation kit typically includes detailed documentation, schematics, and application notes to aid in the evaluation process. The isolated power supply provides the necessary voltage for driving the gate drivers, while the test points allow for monitoring the gate drive signals. The configurable settings allow for optimizing the gate driver performance for specific applications. Careful attention to component selection and layout ensures accurate and reliable performance measurements.
