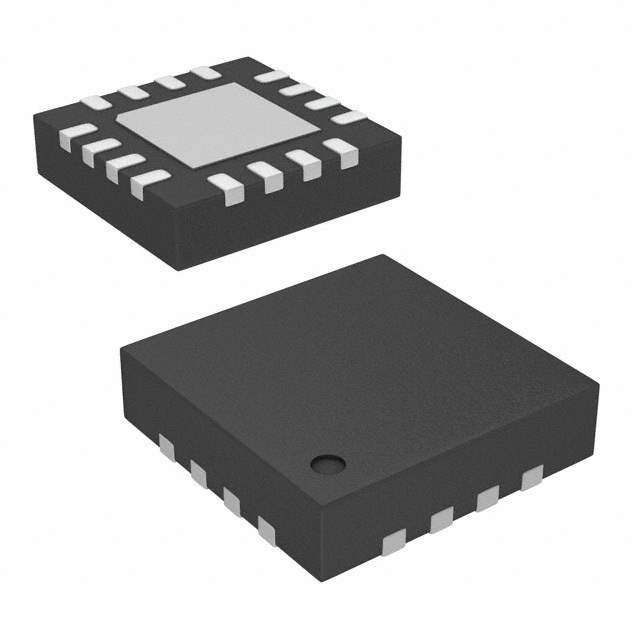

AAT3156ISN-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT3156ISN-T1

Part No AAT3156ISN-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 16QFN
Datasheet
AAT3156ISN-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Output Voltage 4.3V
Channel Output Current 30mA
Frequency 1MHz
Dimming AS2Cwire
Applications Backlight, Camera Flash
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-QFN (4x4)
Win Source Part Number 076739-AAT3156ISN-T1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AAT3156ISN-T1 CAD Model

Description

AAT3156ISN-T1 Precision LED Driver

The AAT3156ISN-T1 is a precision LED driver known for its integration and high-efficiency design. It delivers smooth, flicker-free illumination and is tailored for precision lighting projects.

  • Industrial lighting systems
  • Commercial backlighting solutions
  • Stage lighting

Features and Benefits:

  • Highly integrated circuitry for enhanced performance
  • Flicker-free illumination reduces eye strain
  • Scalable to large arrays for flexible lighting coverage
  • Robust design withstands harsh environments
  • Energy efficient reducing long-term operational costs

Additional Details:

The AAT3156ISN-T1 enhances lighting system efficiency through a sophisticated design that supports large LED arrays. This device is engineered to provide consistent light output, making it ideal for professional applications.
