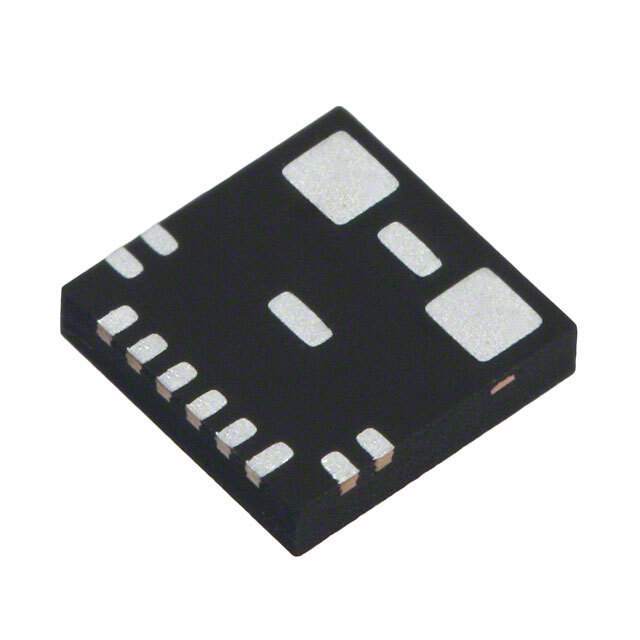

SI8512-C-IM Real Image
Same model may have multiple batches, images only for reference.

SI8512-C-IM

Part No SI8512-C-IM
Manufacturer Silicon Labs
Catalog Current Transducers
Description SENSOR CURRENT XFMR 10A AC
Datasheet
SI8512-C-IM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Silicon Labs
Packaging Tube/Rail
Status Obsolete(EOL)
For Measuring AC
Sensor Type Transformer w/Conditioning
Current - Sensing 10A
Number of Channels 1
Output Configurable (3-Modes)
Sensitivity 196mV/A
Frequency 50kHz to 1MHz
Accuracy ±5%
Supply Voltage - Operating 2.7 V to 5.5 V
Current - Supply (Max) 7mA
Temperature Range - Operating -40°C to 125°C
Polarization Unidirectional
Mounting SMD (SMT)
Dimension 12-VFQFN
Win Source Part Number 1096294-SI8512-C-IM
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SI8512-C-IM CAD Model

Description

The Silicon Labs 1096294-SI8512-C-IM is a sensor that is used for measuring AC.

  • Type: Transformer with conditioning
  • Sensitivity: 196mV/A
  • Output: Configurable (3-modes)
  • Polarization: Unidirectional
  • Frequency Range: 50kHz to 1MHz
  • Current - Sensing: 10A
  • Current - Supply (max): 7mA
  • Accuracy: ±5%
  • Dimension: 12-VFQFN
  • Supply Voltage - Operating: 2.7 V to 5.5 V
  • Status: Obsolete (EOL)
  • Use: Sensors, Transducers
