Same model may have multiple batches, images only for reference.

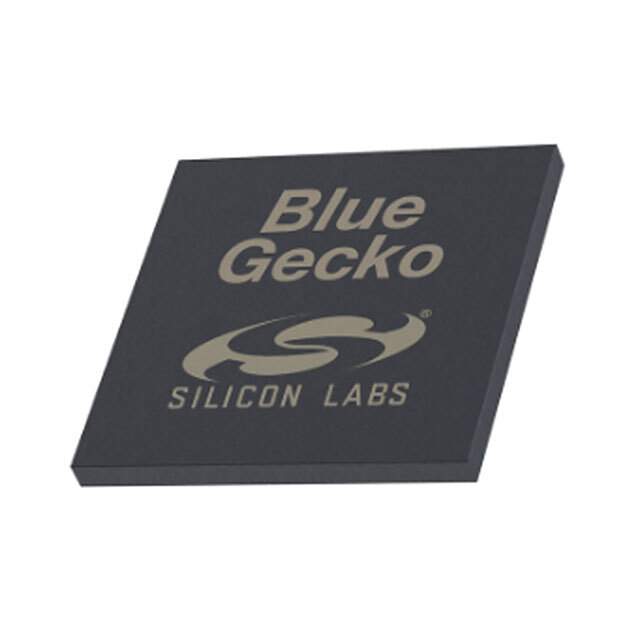

BGM123A256V2R Real Image
Same model may have multiple batches, images only for reference.

BGM123A256V2R

Part No BGM123A256V2R
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RX TXRX MOD BLUETOOTH CHIP SMD  /  Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Datasheet
BGM123A256V2R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Silicon Labs
Package Tape & Reel
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Modulation GFSK
Frequency 2.4GHz
Data Rate 1Mbps
Power - Output 8dBm
Sensitivity -90dBm
Serial Interfaces I2C, I2S, SPI, UART
Antenna Type Integrated, Chip
Memory Size 256kB Flash, 32kB RAM
Voltage - Supply 1.85V ~ 3.8V
Current - Receiving 9mA
Current - Transmitting 8.2mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 56-SMD Module
Base Product Number BGM123
Other Names BGM123A256V1R,336-3808-6,336-3808-1,336-3808-2
Standard Package 1,000
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1235680-BGM123A256V2R
Ultra Librarian 3D Model Ultra Librarian BGM123A256V2R CAD Model

Description

The BGM123A256V2R is an RF transceiver module and modem that is part of the Bluetooth family/standard. This component has a Win Source Part Number of 1235680-BGM123A256V2R and is packaged in a tape & reel with a standard package of 1,000.

  • Mounting: SMD (SMT)
  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.2
  • Data Rate: 1Mbps
  • Memory Size: 256kB flash, 32kB RAM
  • Antenna Type: Integrated, chip
  • Power Output: 8dBm
  • Sensitivity: -90dBm
  • Current (Receiving): 9mA
  • Current (Transmitting): 8.2mA
  • Voltage Supply: 1.85V ~ 3.8V
  • Temperature Range: -40°C ~ 85°C
  • Manufacturer: Silicon Labs
  • MSL Level: 3
  • HTSUS: 8517.62.0090
