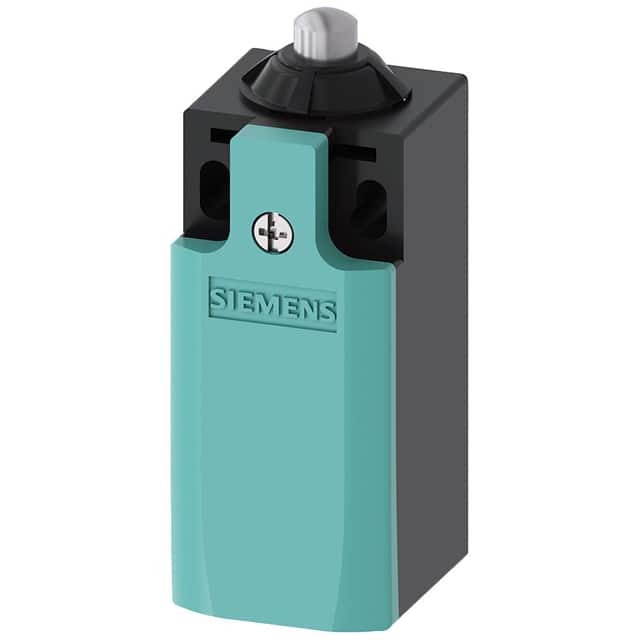

3SE52120CB01 Siemens
Same model may have multiple batches, images only for reference.

3SE52120CB01

Part No 3SE52120CB01
Manufacturer Siemens
Catalog Snap Action, Limit Switches
Description LIMSW,METAL,STNLS PLNGR,1NO+1NC,
Datasheet
3SE52120CB01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Siemens
Series 3SE5
Package Box
Product Status Active
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Current Rating (Amps) 6A (AC), 3A (DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 24 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP66/IP67 - Dust Tight, Water Resistant, Waterproof
Operating Force 2039gf
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 15,000,000 Cycles
Base Product Number 3SE5212
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
Win Source Part Number 1224159-3SE52120CB01
Ultra Librarian 3D Model Ultra Librarian 3SE52120CB01 CAD Model

Description

The 1224159-3SE52120CB01 is a limit switch from Siemens. It is part of the 3SE5 series and has a circuit configuration of DPST-NO/NC.

  • Ingress Protection: IP66/IP67 (Dust Tight, Water Resistant, Waterproof)
  • Voltage Rating: 120V (AC) and 24V (DC)
  • Electrical Life: 100,000 Cycles
  • Mechanical Life: 15,000,000 Cycles
  • Operating Temperature Range: -25°C to 85°C
  • Applications: Precise and Reliable Position Sensing
