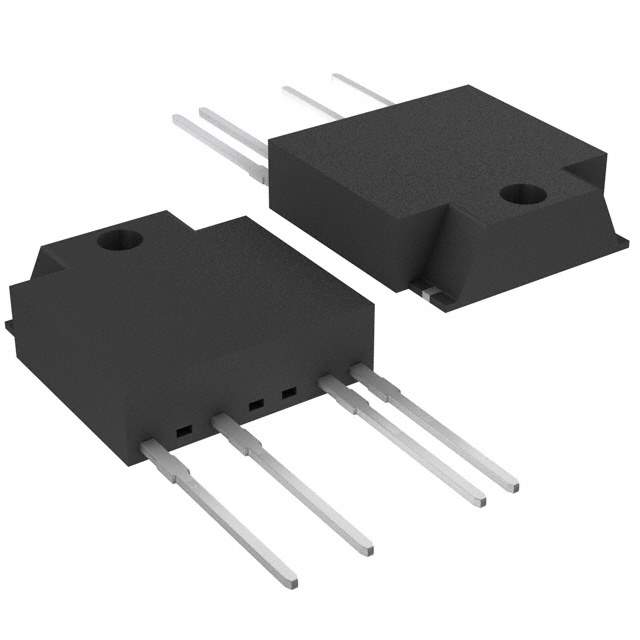

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sharp Microelectronics
Series S101
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 80 V ~ 120 V
Load Current 3 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Other Names 425-2388-5
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1237267-S101S16F
Ultra Librarian 3D Model Ultra Librarian S101S16F CAD Model

Description

The Sharp Microelectronics S101 solid state relay is a SPST-NO (1 Form A) circuit relay with a load current of 3 A and a voltage input of 1.2VDC.

  • Circuit: SPST-NO (1 Form A)
  • Load Current: 3 A
  • Voltage Input: 1.2VDC
  • Output Type: Zero-cross
  • Mounting: Through hole
  • Package: 4-SIP
  • Voltage Load: Between 80 V and 120 V
  • Termination Style: PC pin
  • Relay Status: Obsolete
