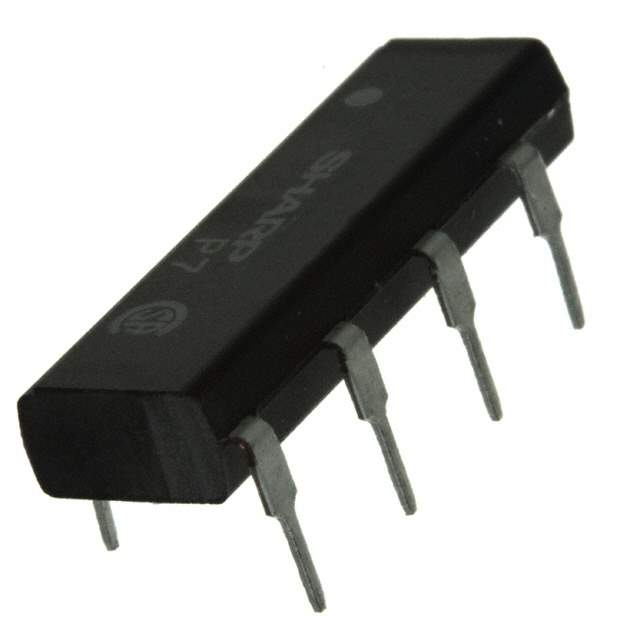

S101DH2F Real Image
Same model may have multiple batches, images only for reference.

S101DH2F

Part No S101DH2F
Manufacturer Sharp Microelectronics
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1.5A 0-120V  /  Solid State SPST-NO (1 Form A) 16-DIP (0.300", 7.62mm), 10 Leads
Datasheet
S101DH2F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sharp Microelectronics
Series S101
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 120 V
Load Current 1.5 A
Termination Style PC Pin
Package / Case 16-DIP (0.300", 7.62mm), 10 Leads
Supplier Device Package 16-DIP
Other Names 425-2385-5
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1237270-S101DH2F
Ultra Librarian 3D Model Ultra Librarian S101DH2F CAD Model

Description

The Sharp Microelectronics S101 series solid-state relay is a SPST-NO (1 Form A) circuit relay with a load current of 1.5 A and voltage input of 1.2VDC.

  • Circuit: SPST-NO (1 Form A)
  • Load Current: 1.5 A
  • Voltage Input: 1.2VDC
  • Output Type: AC, zero cross
  • Voltage Load: 0 V to 120 V
  • Mounting: Through a hole
  • Package: 16-DIP package with 10 leads
  • Termination Style: PC pin
  • Package: Tube
  • ECCN: EAR99
  • Product Status: Obsolete
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.41.0030
