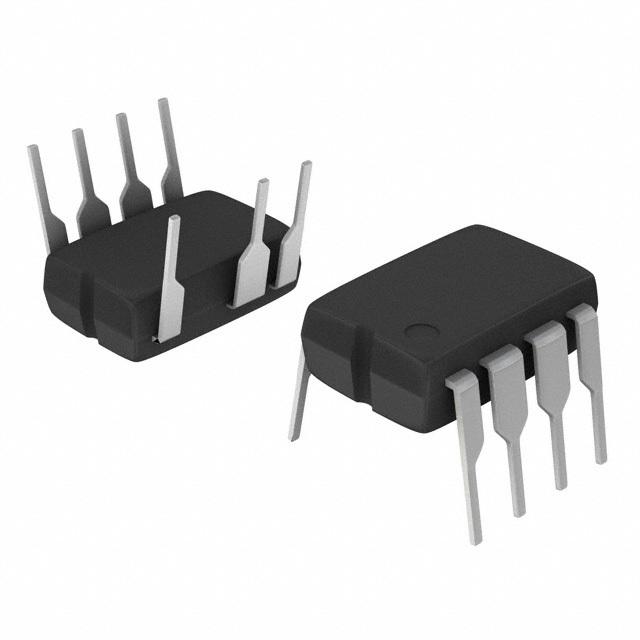

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type AC
Load Current 300mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 120 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 8-DIP
Relay Type Relay
Win Source Part Number 045909-PR23MF11NSZF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PR23MF11NSZF CAD Model

Description

The Sharp Microelectronics Relay is a SPST-NO (1 Form A) circuit relay that operates with a voltage input of 1.2VDC and an AC output type.

  • Load Current: 300mA
  • Voltage Load: 0 to 120V
  • Mounting Type: Through Hole
  • Packaging: Tube/Rail
  • Case/Package: 8-DIP
  • Category: Relay
  • Supply and Demand: Limited
