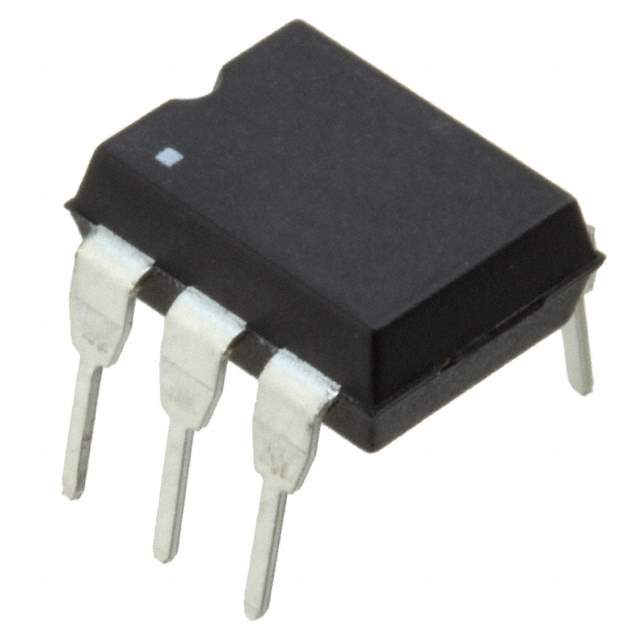

LH1501BT Real Image
Same model may have multiple batches, images only for reference.

LH1501BT

Part No LH1501BT
Manufacturer Vishay
Catalog Solid State Relays
Description DIP-6 SSR 1 FORM B 3750 VRMS
Datasheet
LH1501BT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Max On Resistance 20 Ohm
Load Current 150mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 350 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP
Relay Type Relay
Win Source Part Number 070947-LH1501BT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1501BT CAD Model

Description

The Vishay LH1501BT is a relay designed for through-hole mounting.

  • Load Current: 150mA
  • Voltage Load: 0 to 350V
  • Circuit: SPST-NC (1 Form B)
  • Input Voltage: 1.26VDC
  • Package: 6-DIP
  • Popularity: Medium
  • Supply and Demand Status: Limited
