Same model may have multiple batches, images only for reference.

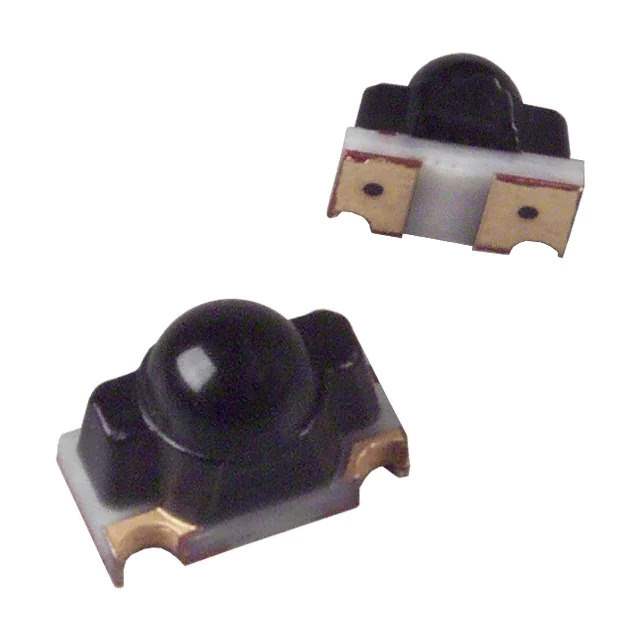

PD100MF0MP Real Image
Same model may have multiple batches, images only for reference.

PD100MF0MP

Part No PD100MF0MP
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 850NM SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Sharp Microelectronics
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Wavelength 850nm
Spectral Range 680nm ~ 1100nm
Response Time 10ns
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Dark (Typ) 10nA
Viewing Angle 40°
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Surface Mount
Package / Case Side View
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 653830-PD100MF0MP
Ultra Librarian 3D Model Ultra Librarian PD100MF0MP CAD Model

Description

The 653830-PD100MF0MP is an optical sensor photodiode designed for various applications in the field of sensors and transducers.

  • Response Time: 10ns
  • Maximum Reverse Voltage: 20V
  • Viewing Angle: 40 degrees
  • Wavelength: 850nm
  • Spectral Range: 680nm to 1100nm
  • Dark Current: 10nA
  • Package: surface mount
  • Operating Temperature: -30°C to 85°C
  • Status: an obsolete product from Sharp Microelectronics
