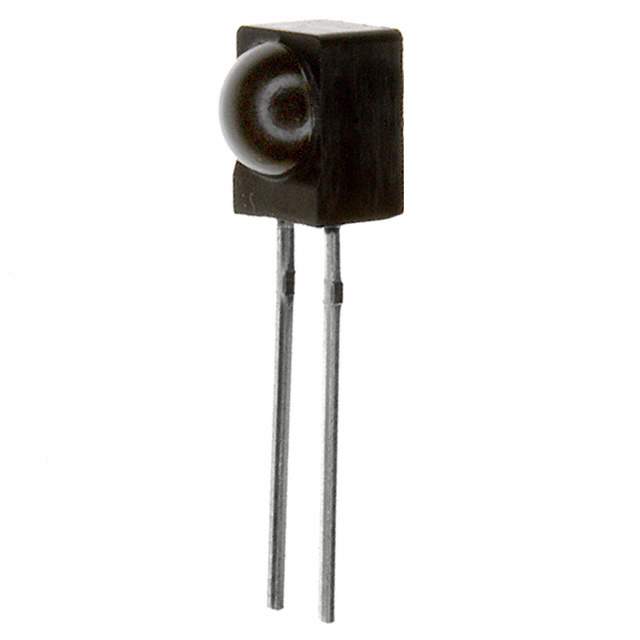

BPV23NF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
Wavelength 950nm
Spectral Range 870nm to 1050nm
Diode Type PIN
Voltage - DC Reverse (Vr) (Max) 60V
Current - Dark (Typ) 2nA
Active Area 4.4mm2
Viewing Angle 120°
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Dimension Radial, Side View
Win Source Part Number 120401-BPV23NF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BPV23NF CAD Model

Description

BPV23NF Photodiode

Designed for maximum efficiency, the BPV23NF photodiode is perfect for applications demanding robust performance in varying conditions.

  • Applications:
    • High-speed optical communication
    • Security systems
    • Industrial control applications
  • Features and Benefits:
    • Superior bandwidth for enhanced data handling
    • Operates effectively across a variety of environmental conditions
    • Ergonomic design for simplified installation

With its advanced construction and performance, the BPV23NF stands out as a prime choice for high-demand photonic applications.
