Same model may have multiple batches, images only for reference.

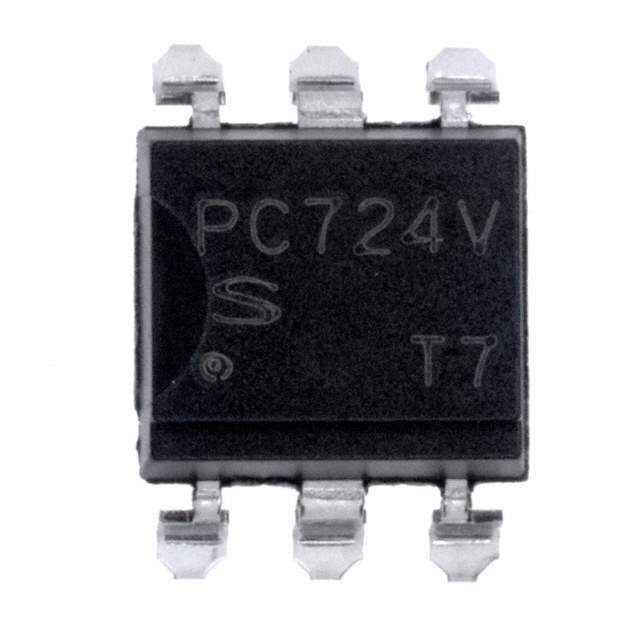

PC724V0NIPX Real Image
Same model may have multiple batches, images only for reference.

PC724V0NIPX

Part No PC724V0NIPX
Manufacturer Sharp Microelectronics
Catalog Custom Parts (N - R)
Description Optoisolatr 5KV Transistor 6-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package SMD/SMT
Collector Emitter Voltage (VCEO) 200 mV
Lead Free Contains Lead
Mount Surface Mount
Number of Channels 1
Number of Circuits 1
Number of Pins 6
Output Current per Channel 80 mA
Output Voltage 35 V
Packaging Cut Tape (CT)
Rise Time 4 µs
RoHS Compliant
Win Source Part Number 1170509-PC724V0NIPX
Categories Custom Parts
Manufacturer Sharp Microelectronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PC724V0NIPX CAD Model

Description

The Sharp Microelectronics PC724V0NIPX is a 1-channel optocoupler with 6 pins and a surface mount package.

  • Number of Channels: 1
  • Number of Pins: 6
  • Mounting Type: Surface Mount
  • Output Voltage: 35 V
  • Output Current per Channel: 80 mA
  • Rise Time: 4 µs
  • Collector Emitter Voltage (VCEO): 200 mV
  • Popularity: Medium
  • Supply and Demand: Limited
  • RoHS: Compliant
  • Lead Free Status: Contains Lead
