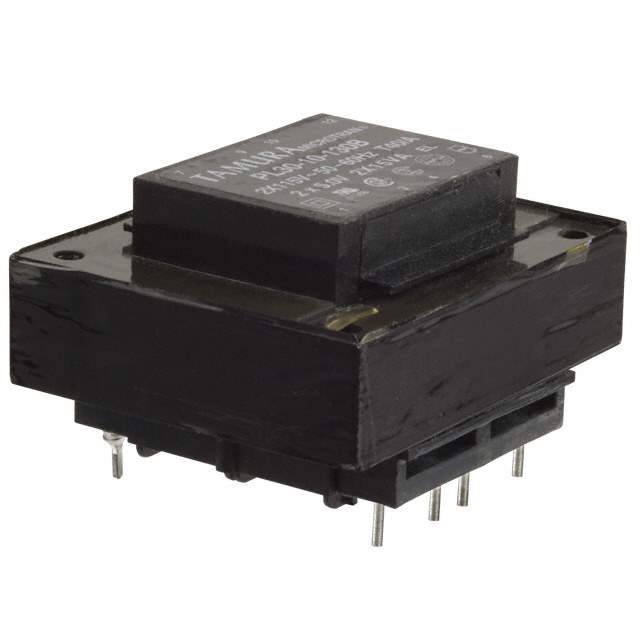

PL30-20-130B Real Image
Same model may have multiple batches, images only for reference.

PL30-20-130B

Part No PL30-20-130B
Manufacturer Tamura
Catalog Power Transformers
Description PWR XFMR LAMINATED 30VA TH  /
Datasheet
PL30-20-130B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Tamura
Series PL30-xx-130B
Package Bulk
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 10V, Series 20V
Current - Output (Max) Parallel 3A, Series 1.5A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 30VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 66.70mm L x 55.60mm W
Height - Seated (Max) 41.00mm
Voltage - Isolation 3500Vrms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Other Names PL3020130B,PL30-20(BOX),MT3123,MT3123-NDR,PL30-20,PL30-20(BULK),Q3795629
Standard Package 20
Win Source Part Number 1228532-PL30-20-130B
Ultra Librarian 3D Model Ultra Librarian PL30-20-130B CAD Model

Description

The PL30-20-130B is a laminated core power transformer manufactured by Tamura.

  • Series: PL30-xx-130B
  • Maximum Power: 30VA
  • Voltage Isolation: 3500Vrms
  • Primary Voltage Rating: 115V or 230V
  • Secondary Voltage Rating: parallel output of 10V or a series output of 20V
  • Termination Style: PC pin
  • Package: bulk package of 20
  • Height: 41.00mm
  • Dimension: 66.70mm L x 55.60mm W
