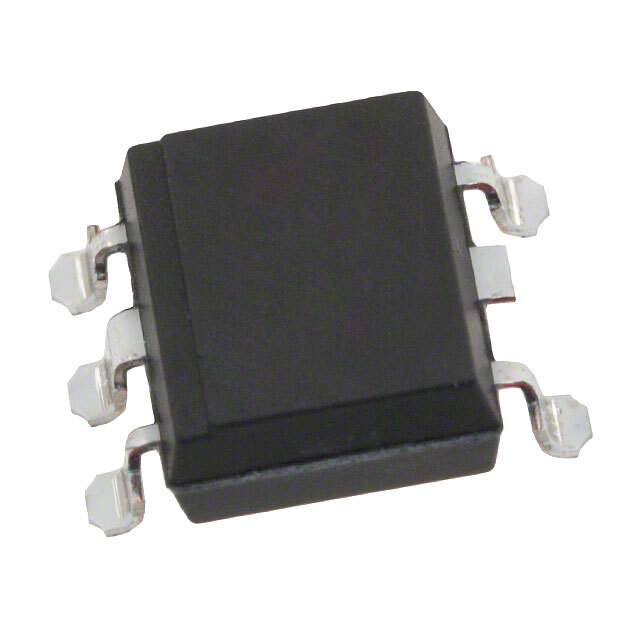

PC4SD11YXPCF Real Image
Same model may have multiple batches, images only for reference.

PC4SD11YXPCF

Part No PC4SD11YXPCF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description Non-zero cross type DIP 6pin Phototriac Coupler for triggering
Datasheet
PC4SD11YXPCF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 800V
Static dV/dt (Minimum) 50V/μs
Current - LED Trigger (Ift) (Maximum) 5mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Maximum)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Operating Temperature Range -30°C ~ 100°C
Mounting SMD
Package 6-SMD
Manufacturer Package 6-SMD
Approvals CSA, UR, VDE
Win Source Part Number 1235749-PC4SD11YXPCF
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Limited
Family Name PC4SD11
Introduction Date August 31, 2002
ECCN EAR99
Country of Origin China ,Indonesia ,Japan ,Philippines
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PC4SD11YXPCF CAD Model

Description

The Sharp Microelectronics component with Win Source Part Number 1235749-PC4SD11YXPCF is a Triac output type electronic component with a voltage-off state of 800V and voltage-isolation of 5000Vrms.

  • Manufacturer: Sharp Microelectronics
  • Product: with Win Source Part Number 1235749-PC4SD11YXPCF
  • Type: Triac output
  • Voltage-Off State: 800V
  • Voltage-Isolation: 5000Vrms
  • Current-Hold (Maximum): 3.5mA
  • Current-On State (Maximum): 100mA
  • Static dV/dt: 50V/μs
  • Current-LED Trigger: 5mA
  • Application: Isolators
  • Supply and Demand: Limited
  • Package: 6-SMD
  • Family Name: PC4SD11
