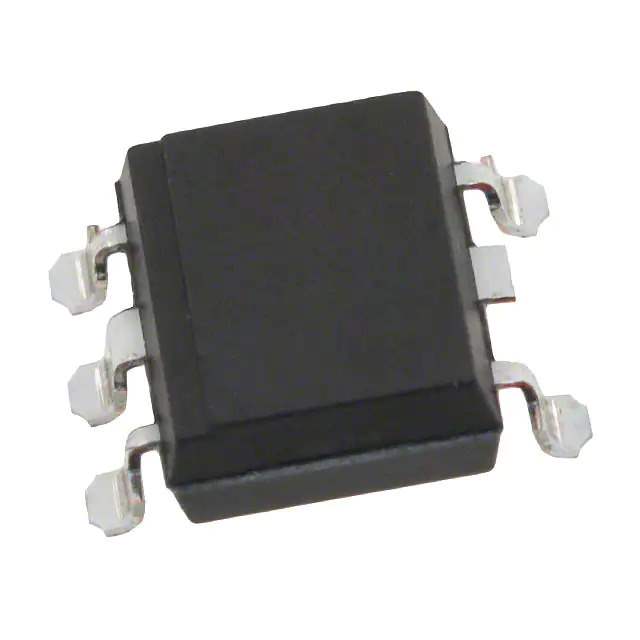

PC3SD12NXZA Real Image
Same model may have multiple batches, images only for reference.

PC3SD12NXZA

Part No PC3SD12NXZA
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD / Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 1kV/µs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 3.5mA
Turn On Time 50µs (Max)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SMD
Supplier Device Package 6-SMD
Approval Agency CSA, UR
Base Product Number PC3SD12
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 888650-PC3SD12NXZA
Ultra Librarian 3D Model Ultra Librarian PC3SD12NXZA CAD Model

Description

The PC3SD12NXZA is an optoisolator triac output from Sharp Microelectronics.

  • Voltage Off State: 600V
  • Voltage Isolation: 5000Vrms
  • Current On State: 100mA
  • Current Hold: 3.5mA
  • Zero Crossing Circuit: No
  • Turn On Time: 50µs
  • Package: 6-SMD
  • Operating Temperature: -30°C to 100°C
  • Status: Obsolete
  • Approvals: CSA and UR
  • ECCN: EAR99
  • Base Product Number: PC3SD12
