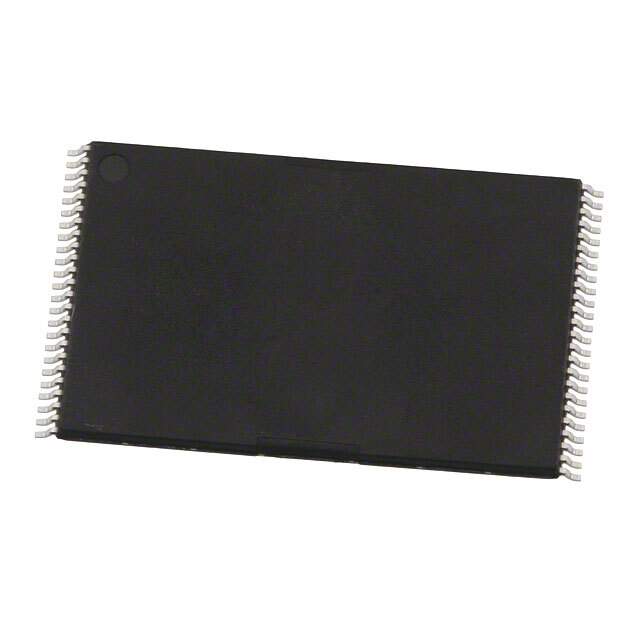

LHF00L28 Real Image
Same model may have multiple batches, images only for reference.

LHF00L28

Part No LHF00L28
Manufacturer Sharp Microelectronics
Catalog Flash
Description IC FLASH 16MBIT 70NS 48TSOP
Datasheet
LHF00L28 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tray
Status Obsolete(EOL)
Memory Format FLASH
Technology FLASH
Memory Size 16Mb (1M x 16)
Access Time 70ns
Supply Voltage - Operating 2.7 V to 3.6 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 48-TSOP
Win Source Part Number 070974-LHF00L28
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LHF00L28 CAD Model

Description

The Sharp Microelectronics FLASH Memory is a high-quality integrated circuit designed for use in various electronic applications. It is part of the Integrated Circuits family and is suitable for use in a wide range of electronic devices. The memory is manufactured to meet the highest standards of quality and reliability, ensuring that it is capable of delivering exceptional performance.

  • Status: obsolete
  • Recommendation: consider alternative parts
