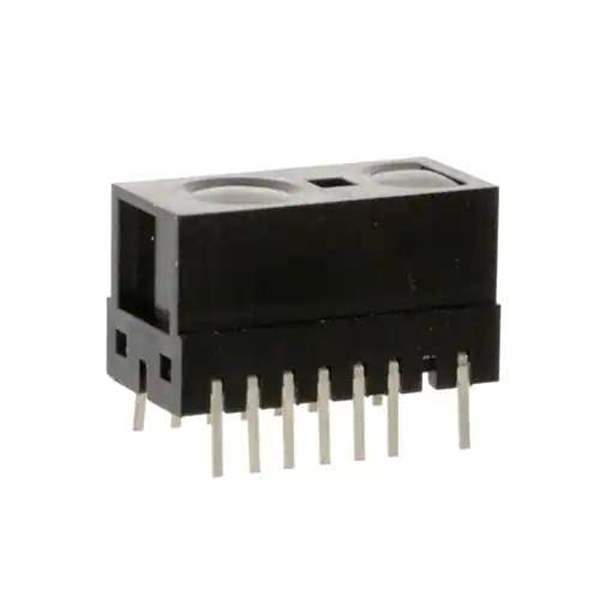

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Distance Measuring
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Sensing Distance 5cm
Output Type Digital
Voltage - Supply 2.7V ~ 6.2V
Current - Supply 10.5 mA
Temperature Range - Operating -10°C ~ 60°C (TA)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9031.80.8085
Win Source Part Number 594844-GP2Y0D805Z0F
Ultra Librarian 3D Model Ultra Librarian GP2Y0D805Z0F CAD Model

Description

The GP2Y0D805Z0F is a distance measuring optical sensor from Sharp Microelectronics.

  • Output Type: digital
  • Supply Voltage: 2.7V to 6.2V
  • Sensing Distance: 5cm
  • Current Supply: 10.5mA
  • Package: tube with 1,000 pcs
  • Operating Temperature: -10°C to 60°C
  • Status: obsolete
  • ECCN: EAR99
  • HTSUS Code: 9031.80.8085
