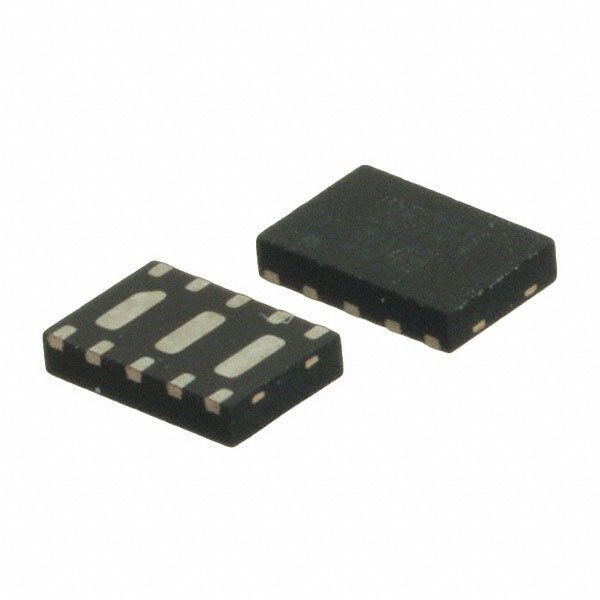

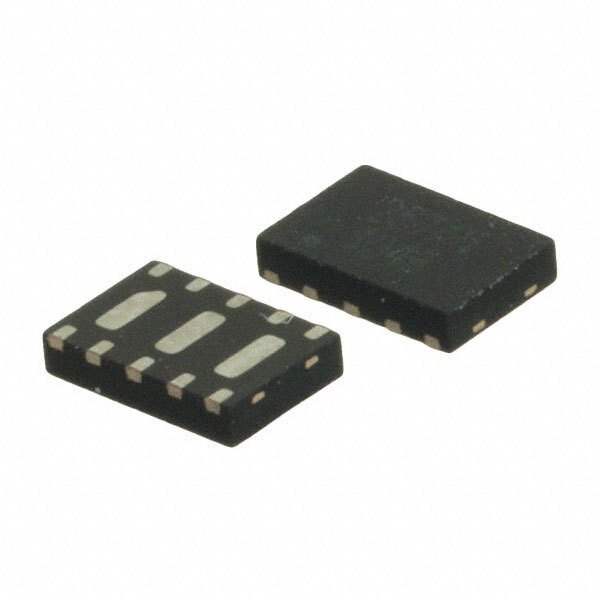

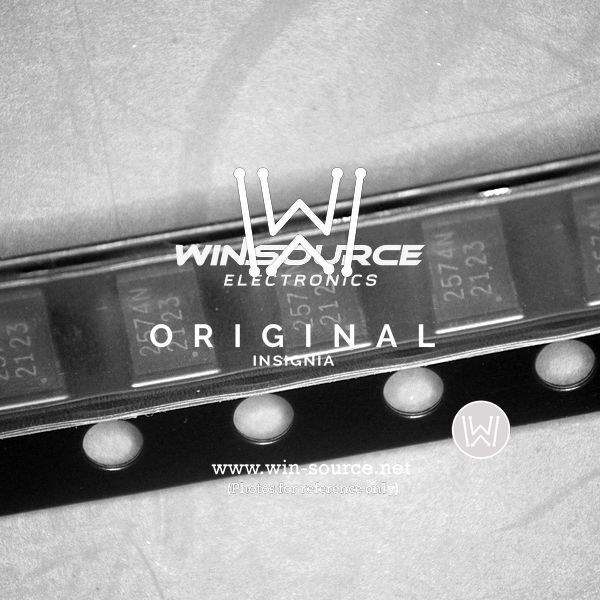

Same model may have multiple batches, images only for reference.

RCLAMP2574N.TCT

Name: RCLAMP2574N.TCT
Brand: Semtech Corporation
SKU: 291398
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RCLAMP2574N.TCT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 2.5VWM 20VC 10SLP / ESD Suppressor Diode Diode Array Uni-Dir 2.5V 10-Pin SLP EP T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	8
STAND-OFF Voltage (Vwm)	2.5V (Max)
Minimum Breakdown Voltage	2.7V
Max Clamping Voltage	20V
Peak Pulse Current(Ippm)	40A (8/20μs)
Power Dissipation - Pd	1000W (1kW)
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	3.75pF @ 1MHz
Temperature Range - Operating	-55°C to 85°C (TA)
Mounting	SMD (SMT)
Case / Package	SLP3020N10
Win Source Part Number	027259-RCLAMP2574N.TCT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	RClamp2574N
Introduction Date	October 20, 2010
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian RCLAMP2574N.TCT CAD Model

Alternative Products

Description

The Semtech Corporation RClamp2574N is a steering type rail-to-rail circuit protection device.

Type: steering type rail-to-rail
Application: general-purpose
Mounting Package: SMD (SMT)
Channels: eight unidirectional
Protection: power line
Capacitance: 3.75pF @ 1MHz
Stand-off voltage: 2.5V (Max)
Minimum breakdown voltage: 2.7V
Maximum clamping voltage: 20V
Peak pulse currents: up to 40A (8/20μs)
Power dissipation: 1000W (1kW)
Status: active
Temperature range: -55°C to 85°C (TA)
Compliance: halogen-free compliant
Usage: commonly used
Popularity rating: high
