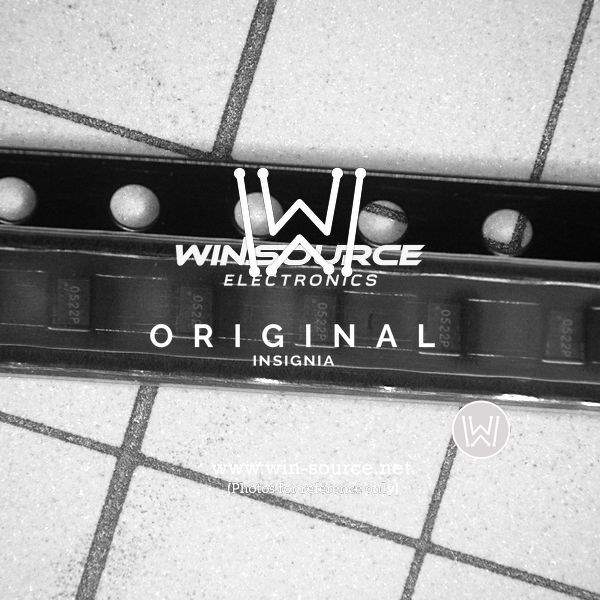

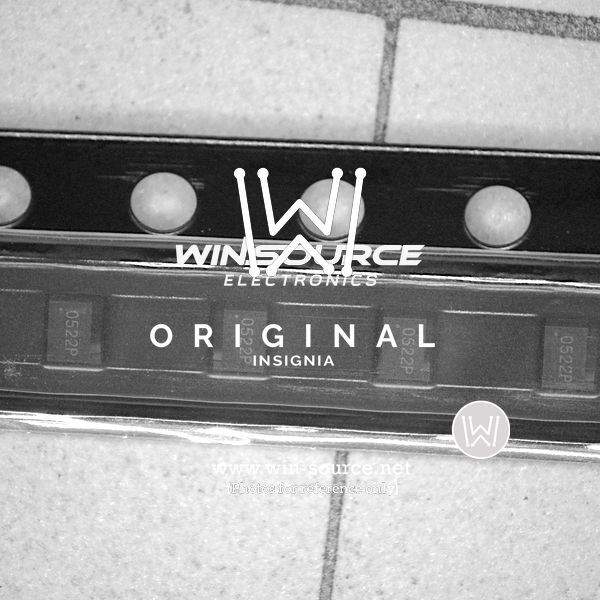

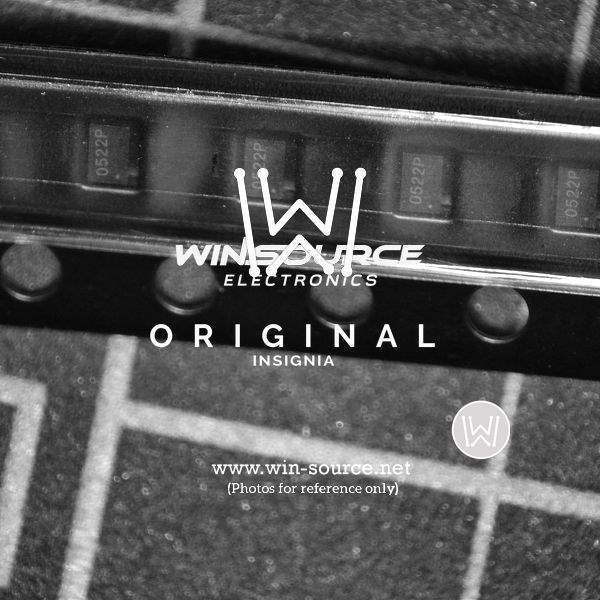

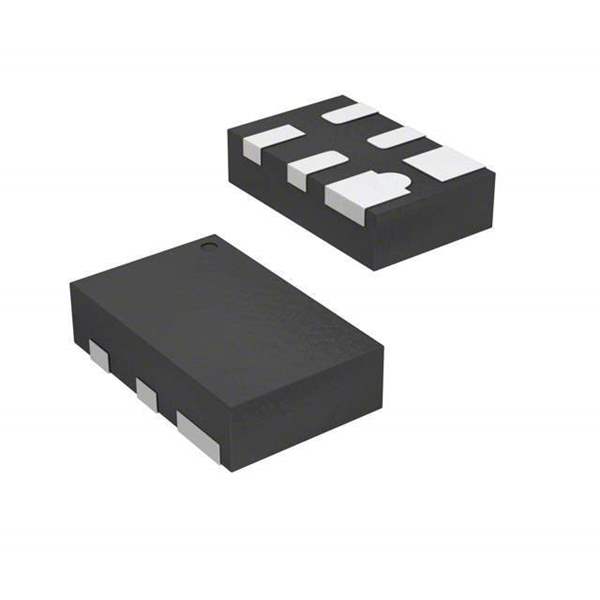

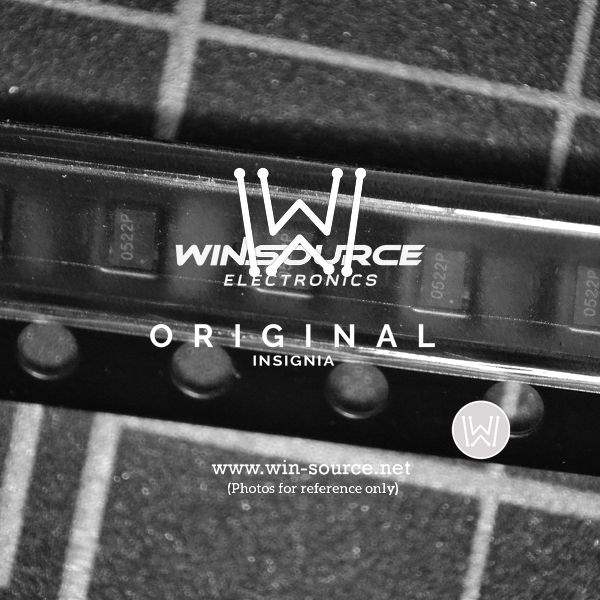

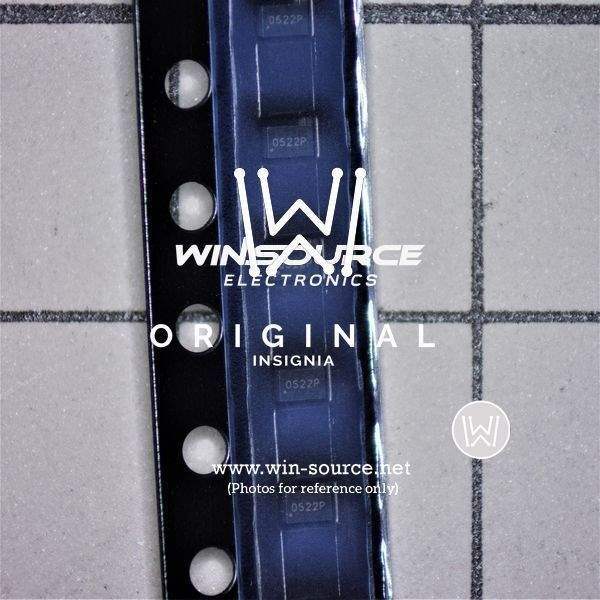

RCLAMP0522P.TCT

Name: RCLAMP0522P.TCT
Brand: Semtech Corporation
SKU: 291367
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RCLAMP0522P.TCT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 15VC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	2
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6V
Max Clamping Voltage	15V
Peak Pulse Current(Ippm)	5A (8/20μs)
Power Dissipation - Pd	150W
Power Line Protection	Yes
Applications	HDMI
Capacitance @ Frequency	0.8pF @ 1MHz
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SLP1610P4
Win Source Part Number	083913-RCLAMP0522P.TCT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian RCLAMP0522P.TCT CAD Model

Alternative Products

Description

The Semtech Corporation 083913-RCLAMP0522P.TCT is a high-popularity electronic component used for circuit protection in HDMI applications.

Type: steering (rail to rail) type
Channels: two unidirectional channels
Features: power line protection
Packaging: SMD (SMT)
Status: active
Maximum Stand-off Voltage: 5V
Minimum Breakdown Voltage: 6V
Maximum Clamping Voltage: 15V
Peak Pulse Current: 5A (8/20μs)
Power Dissipation: 150W
Temperature Range: -55°C to 125°C (TJ)
