Same model may have multiple batches, images only for reference.

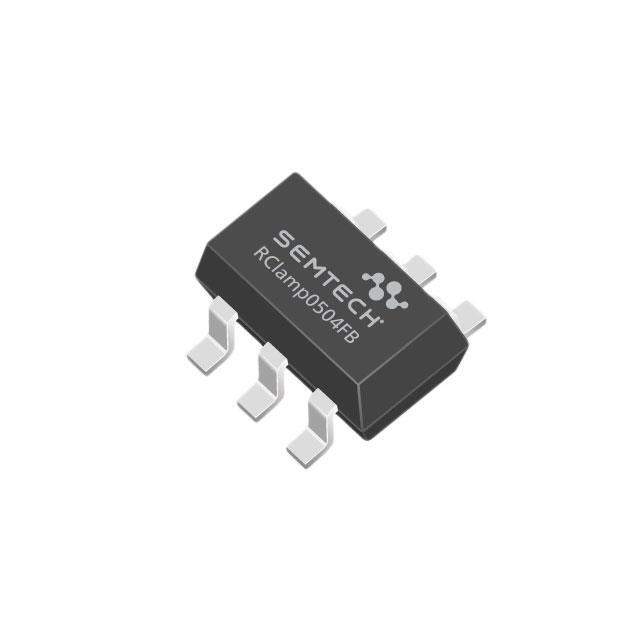

RCLAMP0504FBTCT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP0504FBTCT

Part No RCLAMP0504FBTCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 17.5VC SC70-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 21 Weeks
Features 17.5V Clamp 28A (8/20µs) Ipp Tvs Diode Surface Mount SC-70-6
Manufacturer Semtech Corporation
Series RailClamp®
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C (TJ)
Mounting Surface Mount
Package 6-TSSOP, SC-88, SOT-363
Case / Package SC-70-6
Family Name RCLAMP0504
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number RCLAMP0504FBTCTTR, RCLAMP0504FBTCTCT, RCLAMP0504FBTCTDKR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 931891-RCLAMP0504FBTCT
Ultra Librarian 3D Model Ultra Librarian RCLAMP0504FBTCT CAD Model

Description

The RCLAMP0504FBTCT is a TVS diode manufactured by Semtech Corporation. This electronic component is part of the RailClamp series and features a 17.5V clamp and 28A (8/20μs) Ipp.

  • Series: RailClamp
  • Clamp Voltage: 17.5V
  • Ipp: 28A (8/20μs)
  • Package: 6-TSSOP, SC-88, SOT-363
  • Mounting: Surface
  • Win Source Part Number: 931891-RCLAMP0504FBTCT
