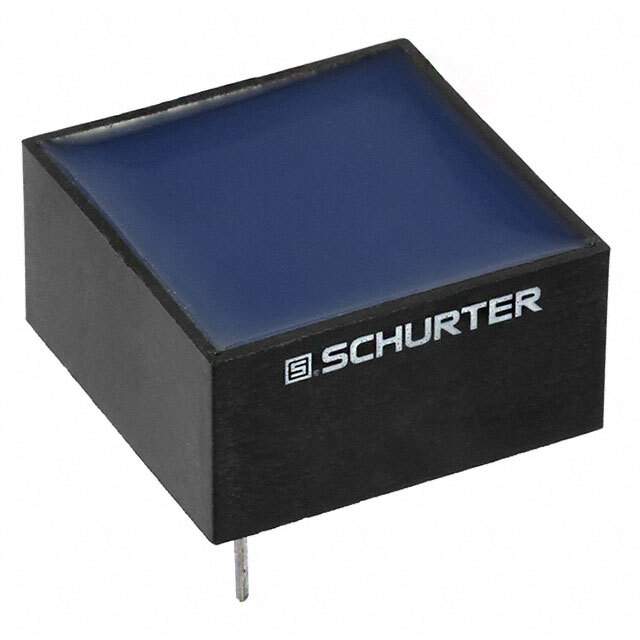

DS1-30-0003 Real Image
Same model may have multiple batches, images only for reference.

DS1-30-0003

Part No DS1-30-0003
Manufacturer Schurter Inc.
Catalog Common Mode Chokes
Description CMC 3.15A 2LN TH / 2 Line Common Mode Choke Through Hole 3.15A DCR 55mOhm
Datasheet
DS1-30-0003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr SCHURTER Inc.
Series DS
Package Bulk
Number of Lines 2
Current Rating (Max) 3.15A
DC Resistance (DCR) (Max) 55mOhm
Voltage Rating - DC 600V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Dimension 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) 0.591" (15.00mm)
Package / Case Radial - 4 Leads
Base Product Number DS1-30
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 486-3098,DS1-30-0003-ND,DS1-30-3.15-150/A
Standard Package 30
Win Source Part Number 1056033-DS1-30-0003
Ultra Librarian 3D Model Ultra Librarian DS1-30-0003 CAD Model

Description

The DS series common mode choke from Schurter Inc. is a high-performance filter designed for use in electronic circuits.

  • Voltage Rating: Up to 600V DC
  • Maximum Current Rating: 3.15A
  • Mounting Style: Through-Hole
  • Package/Case: Radial-4 leads
  • DC Resistance (DCR): 55mOhm
  • Temperature Range: -40°C to 125°C
  • Packaging: Bulk
  • Standard Package: 30
