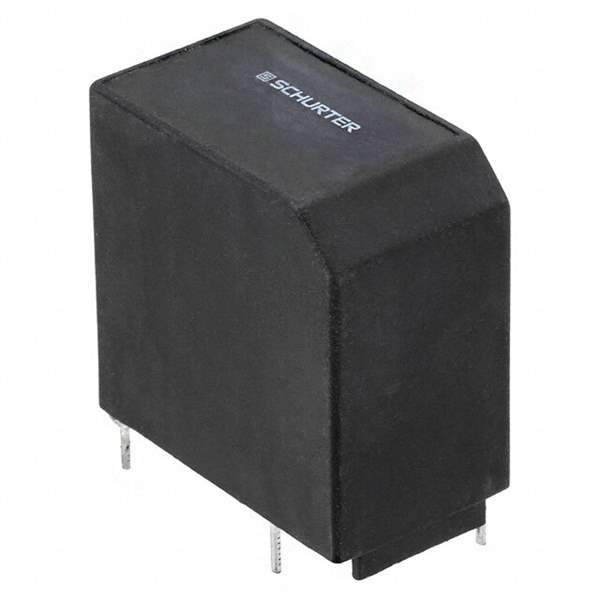

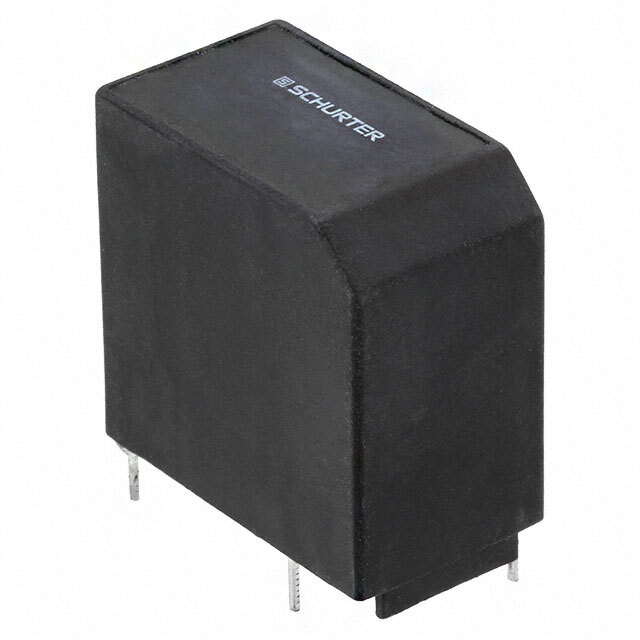

DS1-25-0003

Part No DS1-25-0003
Manufacturer Schurter Inc.
Catalog Common Mode Chokes
Description CMC 3.15A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Lines 2
Current Rating (Max) 3.15A
DC Resistance (DCR) (Max) 40mOhm
Voltage Rating - DC 600V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.984" L x 0.984" W (25.00mm x 25.00mm)
Case / Package Radial
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1531996-DS1-25-0003
Ultra Librarian 3D Model Ultra Librarian DS1-25-0003 CAD Model

Description

N
