Same model may have multiple batches, images only for reference.

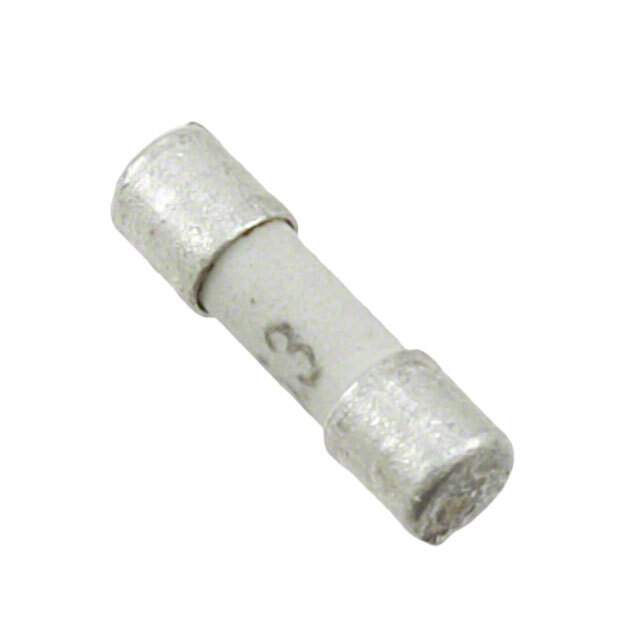

7010.9969.57 Real Image
Same model may have multiple batches, images only for reference.

7010.9969.57

Part No 7010.9969.57
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 6.3A 125VAC/VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Schurter Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 6.3A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Slow Blow
Manufacturer Package Cartridge, Non-Standard
Mounting Style Holder
Breaking Capacity at Rated Voltage 63A
Melting I2t 51
Approvals cURus
Temperature Range - Operating -55°C ~ 85°C
Dimension 0.079" Dia x 0.276" L (2.00mm x 7.00mm)
Manufacturer Pack Quantity 1,500
MSL Level Vendor Undefined
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808171-7010.9969.57
Ultra Librarian 3D Model Ultra Librarian 7010.9969.57 CAD Model

Description

The board mount fuse Schurter Inc. 808171-7010.9969.57 is used in electronic devices from Schurter Inc.

  • Voltage Rating: 125V AC and DC
  • Current Rating: 6.3A
  • Response Time: Slow Blow
  • Melting I2t: 51
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1,500
  • Applications: Various Electronic Devices
