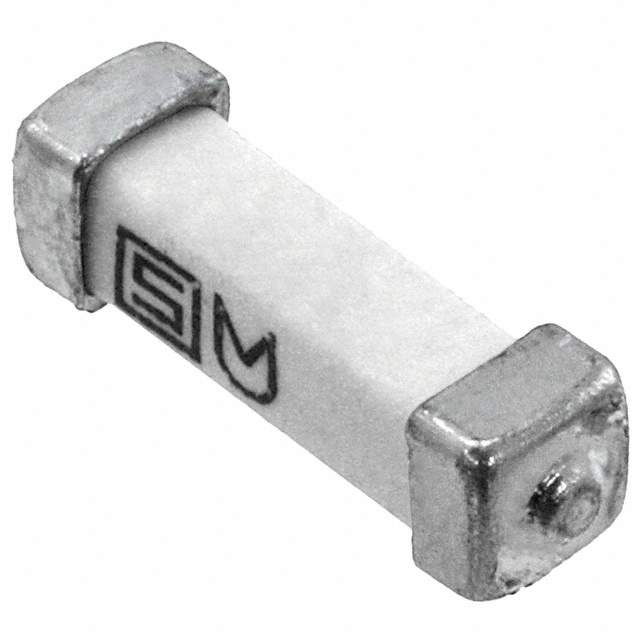

3405.0166.24 Real Image
Same model may have multiple batches, images only for reference.

3405.0166.24

Part No 3405.0166.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 1A 250VAC 125VDC / 1 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
3405.0166.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UMF 250
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 200A
Melting I2t 0.4
Approval Agency cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
Base Product Number 3405.0166
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 3405016624,486-1967-6,2266-3405.0166.24,486-1967-2,486-1967-1
Standard Package 2,000
Win Source Part Number 983700-3405.0166.24
Ultra Librarian 3D Model Ultra Librarian 3405.0166.24 CAD Model

Description

The UMF 250 series fuse is a board mount type fuse designed for circuit protection.

  • Series: UMF 250
  • Fuse Type: Board Mount
  • Voltage: 250VAC and 125VDC
  • Breaking Capacity: 200A
  • Response Time: Fast Blow
  • Melting I2t: 0.4
  • Current Rating: 1A
  • Temperature Range: -55°C to 125°C
  • Package: 2-SMD, square end block
  • Dimension: 0.398 inches in length, 0.118 inches in width and 0.118 inches in height
  • ECCN: EAR99
  • REACH: Unaffected
