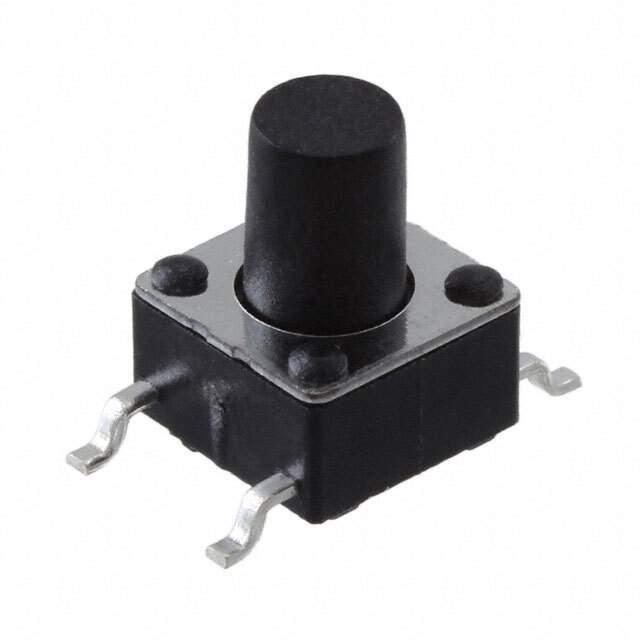

1301.9318.24 Real Image
Same model may have multiple batches, images only for reference.

1301.9318.24

Part No 1301.9318.24
Manufacturer Schurter Inc.
Catalog Tactile Switches
Description LSH 6X6 SHORT TRAVEL SWITCH 8.00 / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr SCHURTER Inc.
Series LSH
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 8.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Ingress Protection IP40
Features Tactile Feedback
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number 1301.9318
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 486-4878-1,486-4878-2,486-4878-6
Standard Package 500
Win Source Part Number 1177689-1301.9318.24
Ultra Librarian 3D Model Ultra Librarian 1301.9318.24 CAD Model

Description

The LSH series tactile switch 1177689-1301.9318.24 from SCHURTER Inc. is a top actuated SPST-NO switch with a circuit rating of 0.05A @ 12VDC.

  • Circuit Rating: 0.05A @ 12VDC
  • Actuation: Top actuated
  • Switch Type: SPST-NO
  • Tactile Feedback: Yes
  • Switch Travel: 0.25mm
  • Mechanical Life: 100,000 cycles
  • Operating Force: 160gf
  • Package: Tape and reel
  • Pieces per Package: 500
