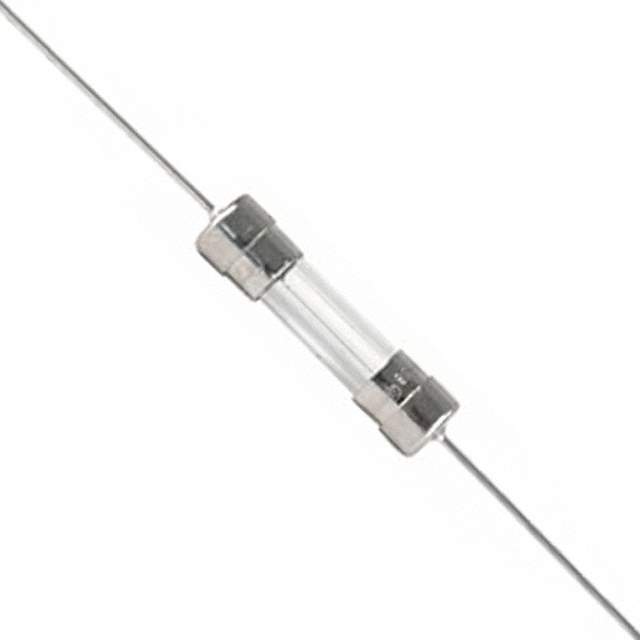

0034.3122.PT Real Image
Same model may have multiple batches, images only for reference.

0034.3122.PT

Part No 0034.3122.PT
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE GLASS 3.15A 250VAC 5X20MM / 3.15 A 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series FST 5x20
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 47
Approval Agency cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.213" Dia x 0.886" L (5.40mm x 22.50mm)
Base Product Number 0034.3122
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Other Names 0034.3122.PT-ND,486-3646
Standard Package 1,000
Win Source Part Number 1038002-0034.3122.PT
Ultra Librarian 3D Model Ultra Librarian 0034.3122.PT CAD Model

Description

This electronic component is a fuse manufactured by SCHURTER Inc. and has a Win Source Part Number of 1038002-0034.3122.PT.

  • Fuse Type: Cartridge, glass
  • Voltage Rating: 250 V
  • Response Time: Slow blow
  • Breaking Capacity @ Rated Voltage: 35A
  • Melting I2t: 47
  • Standard Package: 1,000
  • Mounting Type: Through hole
  • Package/Case: 5mm x 20mm (Axial)
  • Temperature Range: -55°C ~ 125°C
  • Dimension: 0.213" Dia x 0.886" L (5.40mm x 22.50mm)
  • Current Rating (Amps): 3.15 A
  • ECCN: EAR99
  • MSL Level: Vendor undefined
  • REACH Status: REACH unaffected
  • HTSUS: 8536.10.0020
  • Alternative Parts (cross-reference): SS-5H-4A-APH, 36914000000, RST 4, 36914000440, SS-5H-4A-BK, and SS-5H-4A-BKH.
