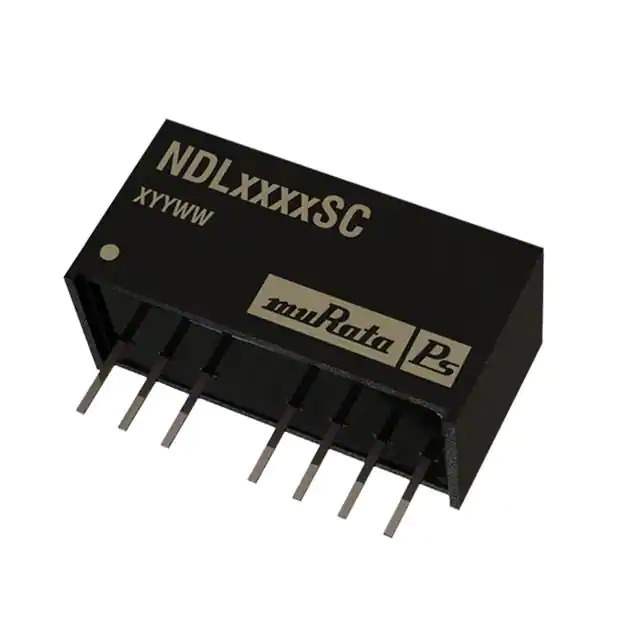

NDL1205SC Real Image
Same model may have multiple batches, images only for reference.

NDL1205SC

Part No NDL1205SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDL (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 73%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number NDL12
Standard Package 23 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648178-NDL1205SC
Ultra Librarian 3D Model Ultra Librarian NDL1205SC CAD Model

Description

The 648178-NDL1205SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc. It belongs to the NDL series, which is designed for power supplies in commercial information technology equipment (ITE).

  • Series: NDL series
  • Package: Tube
  • Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
  • Output: Single output
  • Maximum Output Current: 400mA
  • Input Voltage Range: 9V to 18V
  • Output Voltage: 5V
  • Voltage Isolation: 1 kV
  • Efficiency: 73%
  • Mounting: Through-hole mounting
  • Package: 8-SIP module with 7 leads
  • Operating Temperature Range: -40°C to 85°C
  • Description: Compact and efficient DC-DC converter module that provides reliable power conversion for your electronic devices. With its high voltage isolation and stable performance, it is an excellent choice for power supply applications in commercial ITE devices.
