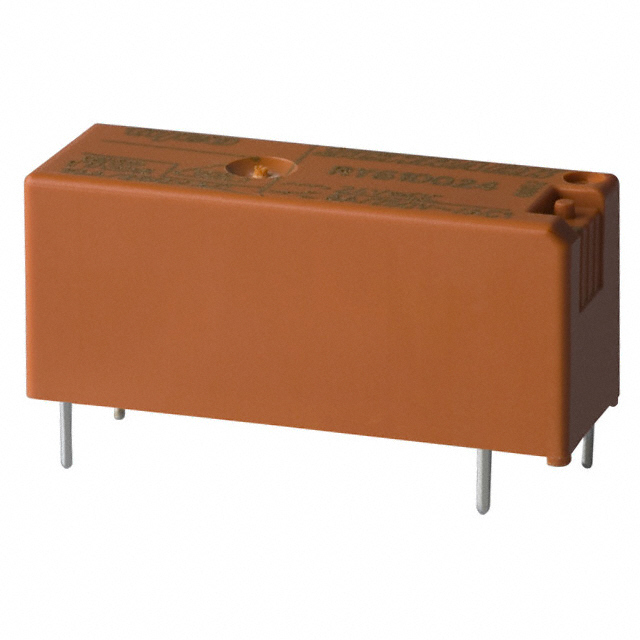

Same model may have multiple batches, images only for reference.
RSL1PVJU Schneider Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RSL1PVJU

Part No RSL1PVJU
Manufacturer Schneider Electric
Catalog Power Relays, Over 2 Amps
Description HARMONY, SLIM INTERFACE RELAY PR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type DIN Rail
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 277VAC - Max
Load - Max Switching 1662VA
Coil Current 14.2 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Screw Terminal
Must Release Voltage 0.6 VDC
Operate Time 12 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CSA, GOST, UL
Relay Type General Purpose
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1549484-RSL1PVJU
Ultra Librarian 3D Model Ultra Librarian RSL1PVJU CAD Model
