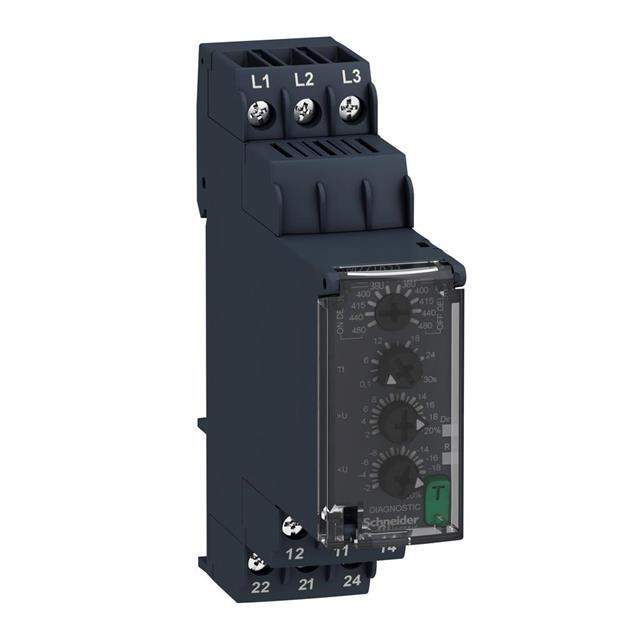

RM22TR33 Real Image
Same model may have multiple batches, images only for reference.

RM22TR33

Part No RM22TR33
Manufacturer Schneider Electric
Catalog Monitor - Current/Voltage - Relay Output
Description HARMONY, MODULAR 3-PHASE VOLTAGE / Phase Loss, Phase Sequence, Voltage Sensing AC 380 ~ 480VAC
Datasheet
RM22TR33 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Monitor - Relay Output
Mfr Schneider Electric
Series Harmony
Package Box
Type Phase Loss, Phase Sequence, Voltage Sensing AC
Trip Status Energized High/Low
Delay Time 0.1 Sec ~ 30 Sec
Voltage - Supply 380 ~ 480VAC
Output Type Relay
Circuit DPDT (2 Form C)
Contact Rating @ Voltage 8A @ 250VAC
Mounting Type DIN Rail
Temperature Range - Operating -20°C ~ 50°C
MSL Level 1 (Unlimited)
Other Names 4008-RM22TR33
Standard Package 1
Win Source Part Number 981015-RM22TR33
Ultra Librarian 3D Model Ultra Librarian RM22TR33 CAD Model

Description

The RM22TR33 is an industrial automation and controls product manufactured by Schneider Electric.

  • Manufacturer: Schneider Electric
  • Type: Phase loss, phase sequence, and voltage sensing AC type
  • Circuit: DPDT
  • Delay Time: 0.1 Sec ~ 30 Sec
  • Voltage Supply: 380 ~ 480VAC
  • Mounting: DIN Rail
  • Operating Temperature: -20°C ~ 50°C
  • Trip Status: Energized High/Low
  • Series: Harmony
  • Fake Product Threat: 46% (Low)
