Same model may have multiple batches, images only for reference.

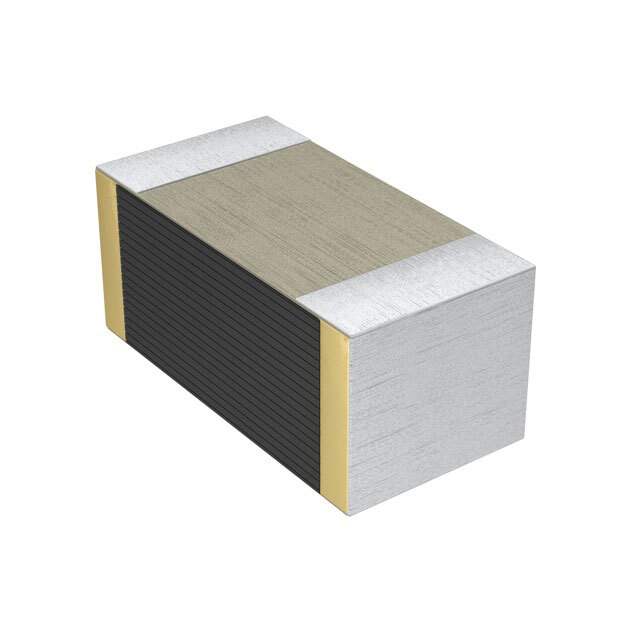

ECH-U1C821GX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1C821GX5

Part No ECH-U1C821GX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 820PF 2% 16VDC 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 820pF
Tolerance ±2%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.033" (0.85mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 16115-ECH-U1C821GX5
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C821GX5 CAD Model

Description

ECH-U1C821GX5 - Ultra-Reliable Multilayer Ceramic Capacitor

Designed to meet the rigorous demands of modern electronics, the ECH-U1C821GX5 capacitor is known for its durability and consistent performance. Ideal for complex electronics requiring dependable components.

  • Features:
  • High insulation resistance
  • Excellent heat resistance
  • Optimized for high-speed circuit designs
  • Applications:
  • Computing equipment
  • High-frequency communication devices
  • Advanced robotics
  • Mil-spec electronic systems

The ECH-U1C821GX5 is an excellent choice for high-stakes projects where component failure is not an option. Its superior reliability ensures optimal performance across various challenging conditions.
