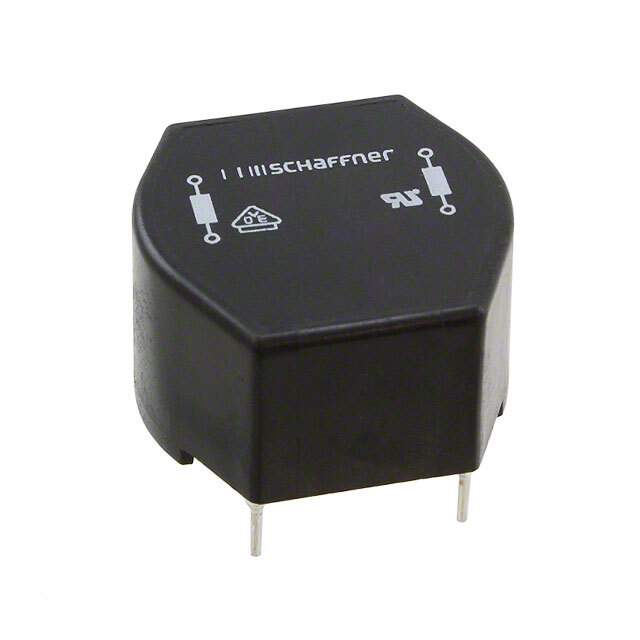

RN122-3-02-4M5 Real Image
Same model may have multiple batches, images only for reference.

RN122-3-02-4M5

Part No RN122-3-02-4M5
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 4.5MH 3A 2LN TH / 4.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 3A DCR 80mOhm (Typ)
Datasheet
RN122-3-02-4M5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Schaffner EMC Inc.
Packaging Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4.5 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 80mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Through Hole
Size / Dimension 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) 0.531" (13.50mm)
Case / Package Horizontal, 4 PC Pin
Base Product Number RN122
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 817-2131,816517
Standard Package 20
Win Source Part Number 1328223-RN122-3-02-4M5
Ultra Librarian 3D Model Ultra Librarian RN122-3-02-4M5 CAD Model

Description

The Schaffner EMC Inc. RN122-3-02-4M5 is a common mode choke that is used in electronic devices for power line filtering.

  • Voltage Rating: 300V
  • Current Rating: 3A
  • Size: 0.886" L x 0.846" W (22.50mm x 21.50mm)
  • Mounting: Through-hole
  • Inductance: 4.5 mH @ 10 kHz
  • DC Resistance: 80mOhm (Typ)
  • Packaging: Tube
  • Standard Package: 20
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
  • Base Product Number: RN122
