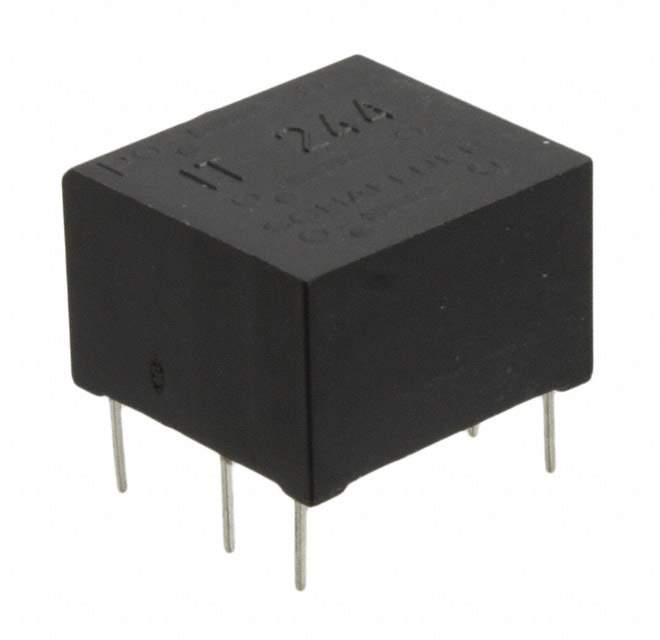

IT244 Real Image
Same model may have multiple batches, images only for reference.

IT244

Part No IT244
Manufacturer Schaffner EMC Inc.
Catalog Pulse Transformers
Description XFRMR PULSE 3:1:1 DL 15MH .1A / 15mH Data/Voice Coupling Pulse Transformer 3:1:1 Through Hole
Datasheet
IT244 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Schaffner EMC Inc.
Packaging Tray
Transformer Type Data/Voice Coupling
Inductance 15mH
Mounting Through Hole
Size / Dimension 0.693" L x 0.657" W (17.60mm x 16.70mm)
Height - Seated (Max) 0.445" (11.30mm)
Temperature Range - Operating -25°C ~ 70°C
Weight 0.2 oz (5.7 g)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 22-472,817-1511,IT 244,800062
Standard Package 200
Win Source Part Number 1328449-IT244
Ultra Librarian 3D Model Ultra Librarian IT244 CAD Model

Description

The Schaffner EMC Inc. IT244 pulse transformer is a data/voice coupling transformer with an inductance of 15mH.

  • Height: 0.445" (11.30mm)
  • Mounting Type: Through Hole
  • Packaging: Tray
  • Size/Dimension: 0.693" L x 0.657" W (17.60mm x 16.70mm)
  • Temperature Range: -25°C to 70°C
  • RoHS3: Compliant
  • Standard Package: 200
