Product Overview: DSC1123DL5-125.0000T from Microchip Technology

The DSC1123DL5-125.0000T is a high-performance, low-jitter, MEMS (Micro-Electro-Mechanical Systems) oscillator designed and manufactured by Microchip Technology, a leading provider of microcontroller and analog semiconductors. This precision oscillator is engineered to deliver exceptional frequency stability and accuracy, making it an ideal solution for a wide range of applications that require reliable clock signals, such as networking, telecommunications, storage, and industrial markets.

Key Features:

• Frequency: The oscillator operates at a frequency of 125.0000 MHz, providing a stable and precise clock source for high-speed digital circuits.
• Supply Voltage: It is designed to work with a supply voltage of 2.5V to 3.3V, accommodating various system power requirements.
• Output Type: The DSC1123 series offers an LVDS (Low Voltage Differential Signaling) output, ensuring low-noise, high-speed data transmission with reduced power consumption.

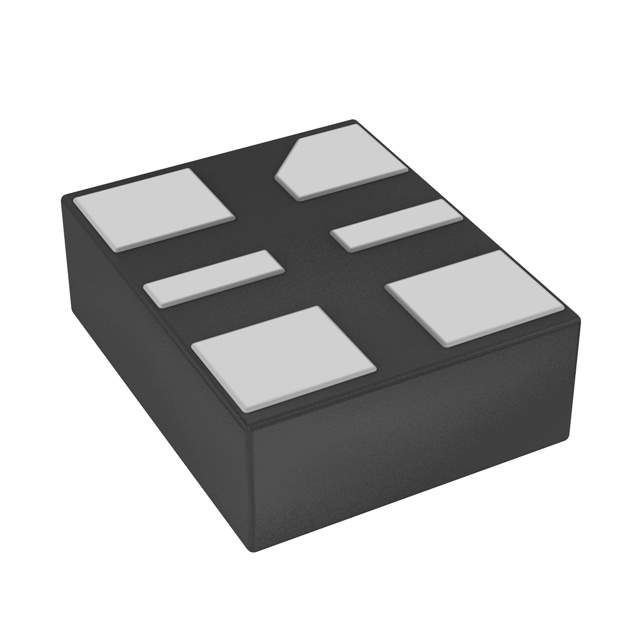

• Package: Encased in a compact 6-SMD (Surface Mount Device) package, the DSC1123DL5-125.0000T is suitable for space-constrained applications.
• Temperature Stability: It exhibits excellent temperature stability, maintaining consistent performance over a wide temperature range.
• Reliability: As a MEMS-based device, it offers superior reliability and longer lifespan compared to traditional crystal oscillators, due to its inherent resistance to shock and vibration.

Applications:

The DSC1123DL5-125.0000T is versatile and can be used in various applications, including but not limited to:

• High-speed networking equipment such as routers, switches, and servers
• Telecommunication infrastructure including base stations and network interface cards
• Data storage systems like SSDs (Solid State Drives) and RAID (Redundant Array of Independent Disks) controllers
• Industrial control systems requiring precise timing for automation and process control

With its robust design and precision timing, the DSC1123DL5-125.0000T from Microchip Technology stands out as a reliable choice for designers and engineers looking for a high-quality, high-frequency oscillator solution.
