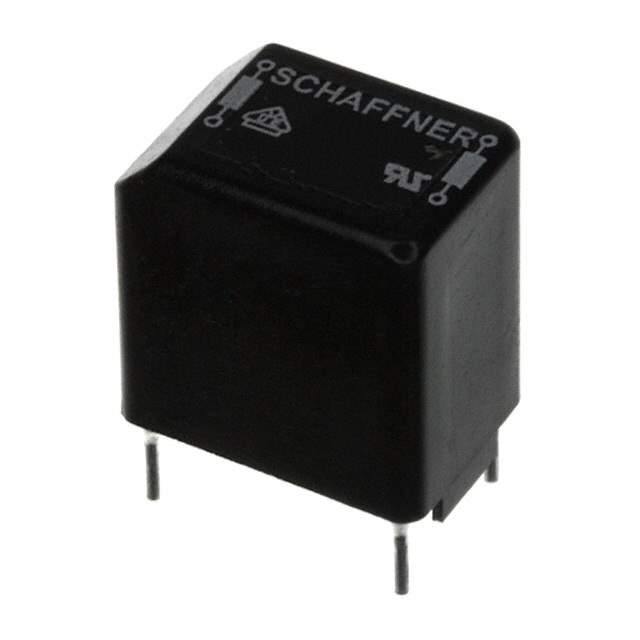

RN212-1.2-02-6M8 Real Image
Same model may have multiple batches, images only for reference.

RN212-1.2-02-6M8

Part No RN212-1.2-02-6M8
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 6.8MH 1.2A 2LN TH / 6.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 250mOhm (Typ)
Datasheet
RN212-1.2-02-6M8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.8 mH @ 10 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 250mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) 0.799" (20.30mm)
Package / Case Vertical, 4 PC Pin
Base Product Number RN212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 816545,817-2170
Standard Package 500
Win Source Part Number 1088727-RN212-1.2-02-6M8
Ultra Librarian 3D Model Ultra Librarian RN212-1.2-02-6M8 CAD Model

Description

The Schaffner EMC Inc. RN212-1.2-02-6M8 is a through-hole common mode choke with a voltage rating of 300V and a current rating of 1.2A.

  • Manufacturer: Schaffner EMC Inc.
  • Voltage Rating: 300V
  • Current Rating: 1.2A
  • Inductance: 6.8 mH @ 10 kHz
  • DC Resistance: 250mOhm (typ)
  • Filter Type: Power Line
  • Lines: Two
  • Series: RN series
  • Package: Tube
  • Height: 0.799" (20.30mm)
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: -40°C to 100°C
  • RoHS Compliant: Yes
  • Popularity: Medium
