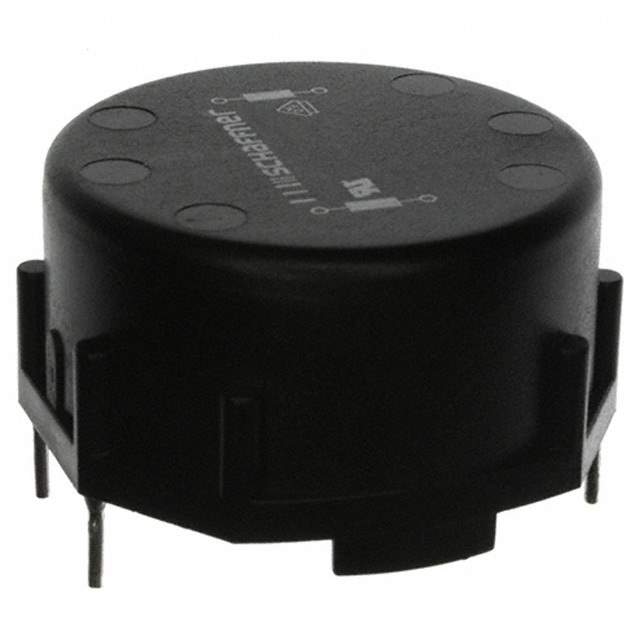

RN152-10-02-1M8 Real Image
Same model may have multiple batches, images only for reference.

RN152-10-02-1M8

Part No RN152-10-02-1M8
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 1.8MH 10A 2LN TH / 1.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 10A DCR 14mOhm (Typ)
Datasheet
RN152-10-02-1M8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.8 mH @ 10 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 14mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 1.693" L x 1.646" W (43.00mm x 41.80mm)
Height (Max) 0.996" (25.30mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number RN152
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 817-2150,816531
Standard Package 100
Win Source Part Number 1182207-RN152-10-02-1M8
Ultra Librarian 3D Model Ultra Librarian RN152-10-02-1M8 CAD Model

Description

The Schaffner EMC Inc. RN152-10-02-1M8 is a common mode choke filter with 2 lines and an inductance of 1.8mH @ 10kHz.

  • Maximum DC Resistance: 14mOhm (typ)
  • Maximum Current: 10A
  • Voltage Rating: 300V AC
  • Temperature Range: -40°C to 100°C
  • Package: horizontal, 4 PC pin
  • Packaging: tube
  • Dimensions: 1.693" L x 1.646" W (43.00mm x 41.80mm)
  • Approvals: ENEC, UR, and VDE
