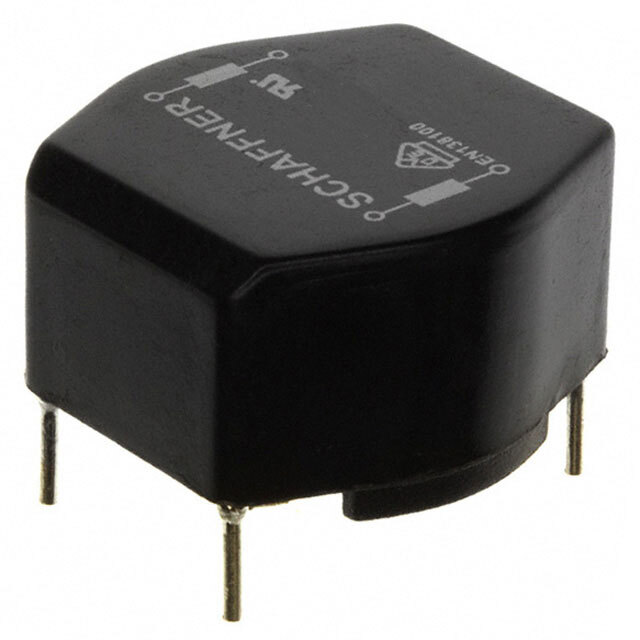

RN114-3-02-2M0 Schaffner EMC Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RN114-3-02-2M0

Part No RN114-3-02-2M0
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 2MH 3A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 52mOhm (Typ)
Voltage Rating - AC 300V
Operating Temperature -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Size / Dimension 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) 0.531" (13.50mm)
Package / Case Horizontal, 4 PC Pin
Ultra Librarian 3D Model Ultra Librarian RN114-3-02-2M0 CAD Model
