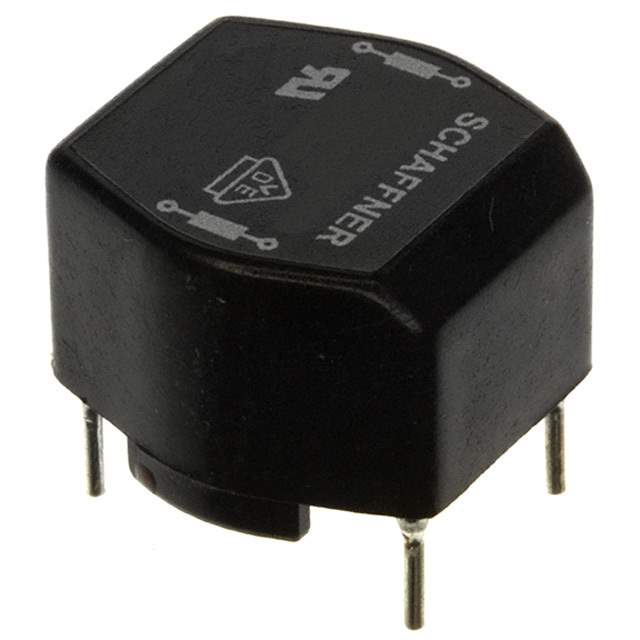

RN112-0.8-02 Real Image
Same model may have multiple batches, images only for reference.

RN112-0.8-02

Part No RN112-0.8-02
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 10MH 800MA 2LN TH / Current-compensated Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Schaffner EMC Inc.
Packaging Tray
Part Status Obsolete (End Of Life)
Filter Type Power Line
Number of Lines 2
Inductance at Frequency 10mH at 10kHz
Current Rating (Maximum) 800mA (Typ)
DC Resistance (DCR) (Maximum) 370mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approvals UR, VDE
Mounting Style Through Hole
Dimension 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Maximum) 0.508" (12.90mm)
Manufacturer Package Horizontal, 4 PC Pin
Manufacturer Pack Quantity 25
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807158-RN112-0.8-02
Ultra Librarian 3D Model Ultra Librarian RN112-0.8-02 CAD Model

Description

The Schaffner EMC Inc. RN112-0.8-02 is a power line filter with 2 lines and a voltage rating of 250V AC.

  • Mounting Style: Through-Hole
  • Approvals: UR, VDE
  • Obsolete: Yes (End Of Life)
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.697" L x 0.673" W (17.70mm x 17.10mm)
  • Height: 0.508" (12.90mm)
  • Current Rating: 800mA (Typ)
  • DC Resistance (DCR): 370mOhm (Typ)
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 25
  • MSL Level: Not Applicable
  • Inductance @ Frequency: 10mH @ 10kHz
