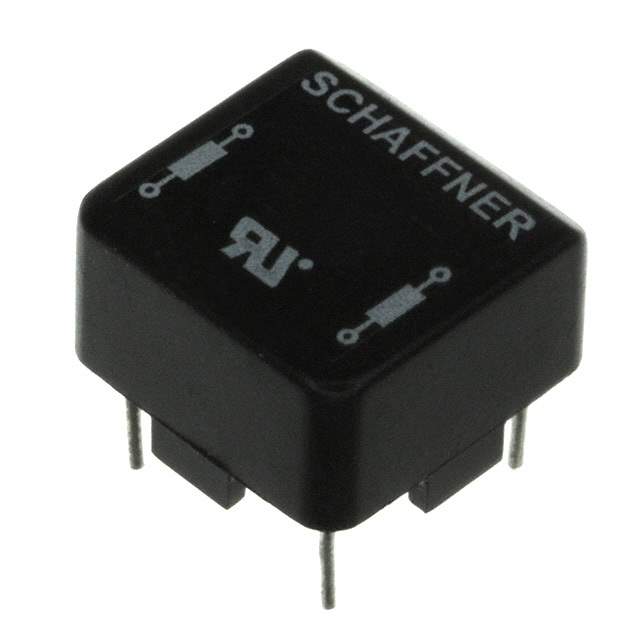

RN102-0.3-02-12M Real Image
Same model may have multiple batches, images only for reference.

RN102-0.3-02-12M

Part No RN102-0.3-02-12M
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 12MH 300MA 2LN TH
Datasheet
RN102-0.3-02-12M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Schaffner EMC Inc.
Series RN
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 12mH @ 10kHz
Current Rating (Maximum) 300mA
DC Resistance (DCR) (Maximum) 1.1 Ohm (Typ)
Voltage Rating - AC 300V
Operating Temperature Range -40°C ~ 100°C
Approvals ENEC, UR, VDE
Mounting Style Through Hole
Dimension 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Maximum) 0.366" (9.30mm)
Package Horizontal, 4 PC Pin
Win Source Part Number 793301-RN102-0.3-02-12M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RN102-0.3-02-12M CAD Model

Description

The RN102-0.3-02-12M is a power line filter from Schaffner EMC Inc.

  • Filter Type: 2-line
  • Mounting Style: Through-hole
  • Voltage Rating: 300VAC
  • Operating Temperature: -40°C to 100°C
  • Diameter: 0.551 inches (14.00mm)
  • Width: 0.551 inches (14.00mm)
  • Height: 0.366 inches (9.30mm)
  • Maximum Current: 300mA
  • DC Resistance (DCR): 1.1 Ohm (typ)
  • Approvals: ENEC, UR, VDE
