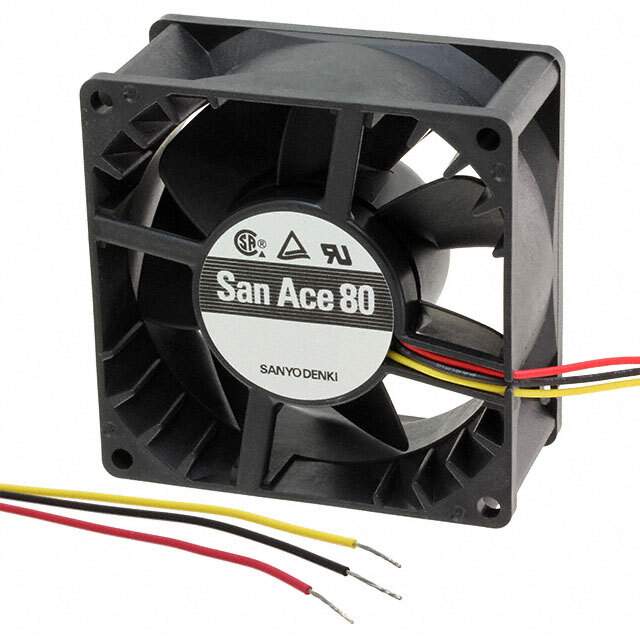

9S0812H401

Part No 9S0812H401
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 39.5 CFM (1.11m³/min) 3 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 80
Package Box
Voltage - Rated 12VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.00mm
Air Flow 39.5 CFM (1.11m³/min)
Static Pressure 0.200 in H2O (49.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 31.0dB(A)
Power (Watts) 2.76 W
RPM 3400 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CSA, UL
Weight 0.167 lb (75.75 g)
Current Rating (Amps) 0.230A
Voltage Range 5 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9S0812
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1350280-9S0812H401
Ultra Librarian 3D Model Ultra Librarian 9S0812H401 CAD Model

Description

The San Ace 80 DC brushless fan from Sanyo Denki America Inc is a high-quality fan designed for thermal management. Sanyo Denki America Inc

  • Voltage Rating: 12VDC
  • Power Rating: 2.76 W
  • Size: 80mm L x 80mm H
  • Fan Shape: Square
  • Air Flow: 39.5 CFM (1.11m³/min)
  • Static Pressure: 0.200 in H2O (49.8 Pa)
  • Bearing Type: Ball
  • Product Status: Active
