Same model may have multiple batches, images only for reference.

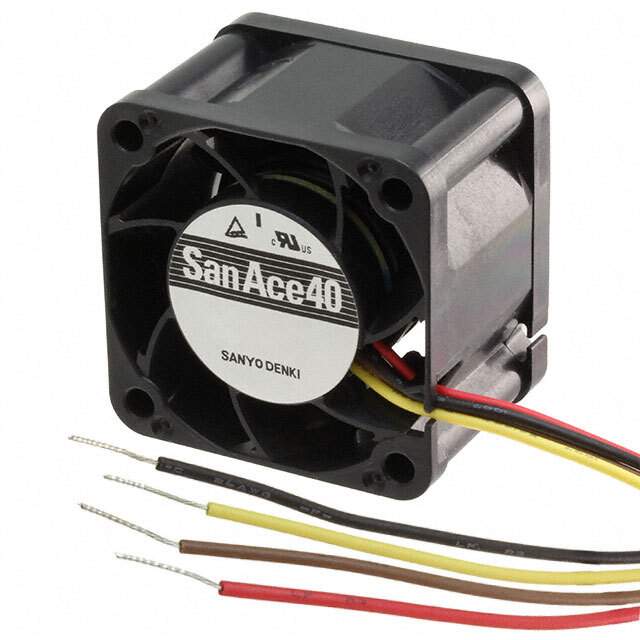

9GA0424P3J001 Real Image
Same model may have multiple batches, images only for reference.

9GA0424P3J001

Part No 9GA0424P3J001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 40X28MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 23.7 CFM (0.664m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 40
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 23.7 CFM (0.664m³/min)
Static Pressure 2.150 in H2O (535.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 54.0dB(A)
Power (Watts) 6.48 W
RPM 18000 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.117 lb (53.07 g)
Current Rating (Amps) 0.270A
Voltage Range 21.6 ~ 26.4VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GA0424
Standard Package 126
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1341259-9GA0424P3J001
Ultra Librarian 3D Model Ultra Librarian 9GA0424P3J001 CAD Model

Description

The San Ace 40 is a high-performance DC brushless fan designed for use in thermal management applications.

  • Voltage: 24VDC
  • Power: 6.48W
  • Air Flow (Max): 23.7 CFM
  • Static Pressure: 2.150 in H2O
  • Control: PWM
  • Sensor: Speed Sensor (Tach)
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • Lifetime: 40000 hours @ 60°C
  • Package: Box
  • Weight: 0.117 lb (53.07 g)
